Transportation Improvement Program and

Air Quality Conformity Determination



Federal Fiscal Years 2020-2024

MPO Review Draft



Boston Region MPO



Endorsed by the MPO, xxxx



Prepared by

The Central Transportation Planning Staff:

Staff to the Boston Region Metropolitan Planning Organization



Directed by the Boston Region Metropolitan Planning Organization,

which is composed of the:



Massachusetts Department of Transportation

Metropolitan Area Planning Council

Massachusetts Bay Transportation Authority

MBTA Advisory Board

Massachusetts Port Authority

Regional Transportation Advisory Council

City of Boston

City of Beverly

City of Everett

City of Framingham

City of Newton

City of Somerville

City of Woburn

Town of Arlington

Town of Bedford

Town of Braintree

Town of Lexington

Town of Medway

Town of Norwood

Federal Highway Administration (nonvoting)

Federal Transit Administration (nonvoting)



NOTICE OF NONDISCRIMINATION RIGHTS AND PROTECTIONS

The MPO complies with Title VI of the Civil Rights Act of 1964, the Americans with Disabilities Act (ADA) and other federal and state nondiscrimination statutes and regulations in all programs and activities. The MPO does not discriminate based on race, color, national origin (including limited English proficiency), religion, creed, gender, ancestry, ethnicity, disability, age, sex, sexual orientation, gender identity or expression, veteran’s status (including Vietnam-era veterans), or background. Any person who believes herself/himself or any specific class of persons to have been subjected to discrimination prohibited by Title VI, ADA, or another nondiscrimination statute or regulation may, herself/himself or via a representative, file a written complaint with the MPO. Complaints filed under federal law (based on race, color, national origin [including limited English proficiency], sex, age, or disability) must be filed no later than 180 calendar days after the date the person believes the discrimination occurred. Complaints filed under Massachusetts General Law (based on race, color, religious creed, national origin, sex, sexual orientation, disability, or ancestry) or Governor’s Executive Order 526, section 4 (based on race, color, age, gender, ethnicity, sexual orientation, gender identity or expression, religion, creed, ancestry, national origin, disability, veteran’s status [including Vietnam-era veterans], or background) must be filed no later than 300 calendar days after the date the person believes the discrimination occurred. A complaint form and additional information may be obtained at www.bostonmpo.org or by contacting the MPO staff at 857.702.3700 (voice), 617.570.9193 (TTY), 617.570.9192 (fax), or eharvey@ctps.org.



To request additional copies of this document or to request it in an accessible format, please contact MPO staff using the methods described below. It is also possible to download the document by visiting www.bostonmpo.org.

Contact MPO staff:

By mail:

Boston Region MPO

Certification Activities Group, Central Transportation Planning Staff

10 Park Plaza, Suite 2150

Boston, MA 02116

By telephone:

857-702-3702 (voice), 617-570-9193 (TTY)

By fax:

617-570-9192

By email:

mgenova@ctps.org



Signature pages to be added



Table of Contents

Executive Summary

Introduction

ffys 2020-24 tip investments

regional target program details

financing the ffys 2020-24 tiP

the tip development process

Approving the tip

updates to the tip

stay involved with the tiP

Chapter 1: 3C Transportation Planning and the Boston Region MPO

THE TRANSPORTATION PLANNING PROCESS

THE BOSTON REGION MPO

Chapter 2: The TIP Process

Introduction to the TIP Process

Funding the TIP

Investment Frameworks

Developing the TIP

Approving the TIP

Updating the TIP

Public Notice

Chapter 3: Summary of Highway and Transit Programming

detailed project descriptions

Chapter 4: Performance Analysis

Overview of Performance-Based Planning and Programming

Performance-based Planning and Programming Activities

The TIP’s Role in PBPP

FFYs 2020-24 Performance Analysis

Performance Monitoring, Reporting, and Evaluation

Chapter 5: Determination of Air Quality Conformity

Background

Conformity Determination

Conclusion

APPENDICES

APPENDIX A: Project Prioritization and Scoring

Appendix B: Greenhouse Gas Monitoring and Evaluation

Appendix C: Public Outreach and Comments

Appendix D: Glossary of Acronyms

Appendix E: Geographic Distribution of TIP Funding

Appendix F: Regulatory Framework and MPO Membership

LIST OF TABLES AND FIGURES

TABLE #

2-1:  Federal Highway Administration Programs Applicable to the FFYs 2020-24 TIP

2-2:  Federal Transit Administration Programs Applicable to the FFYs 2020-24 TI5

3-1:  Boston Region MPO Regional Target Program MPO Discretionary Funds Sourced from the Federal-Aid Highway Program

3-2:  Federal Fiscal Years 2020-24 Transportation Improvement Progra3

3-3:  Federal Fiscal Years 2020-24 Transportation Improvement Program MBTA Federal Capital Program
        FFY 2019 and FFY 2020-2024 TIP - Project List and Descriptions (80% Federal Share)

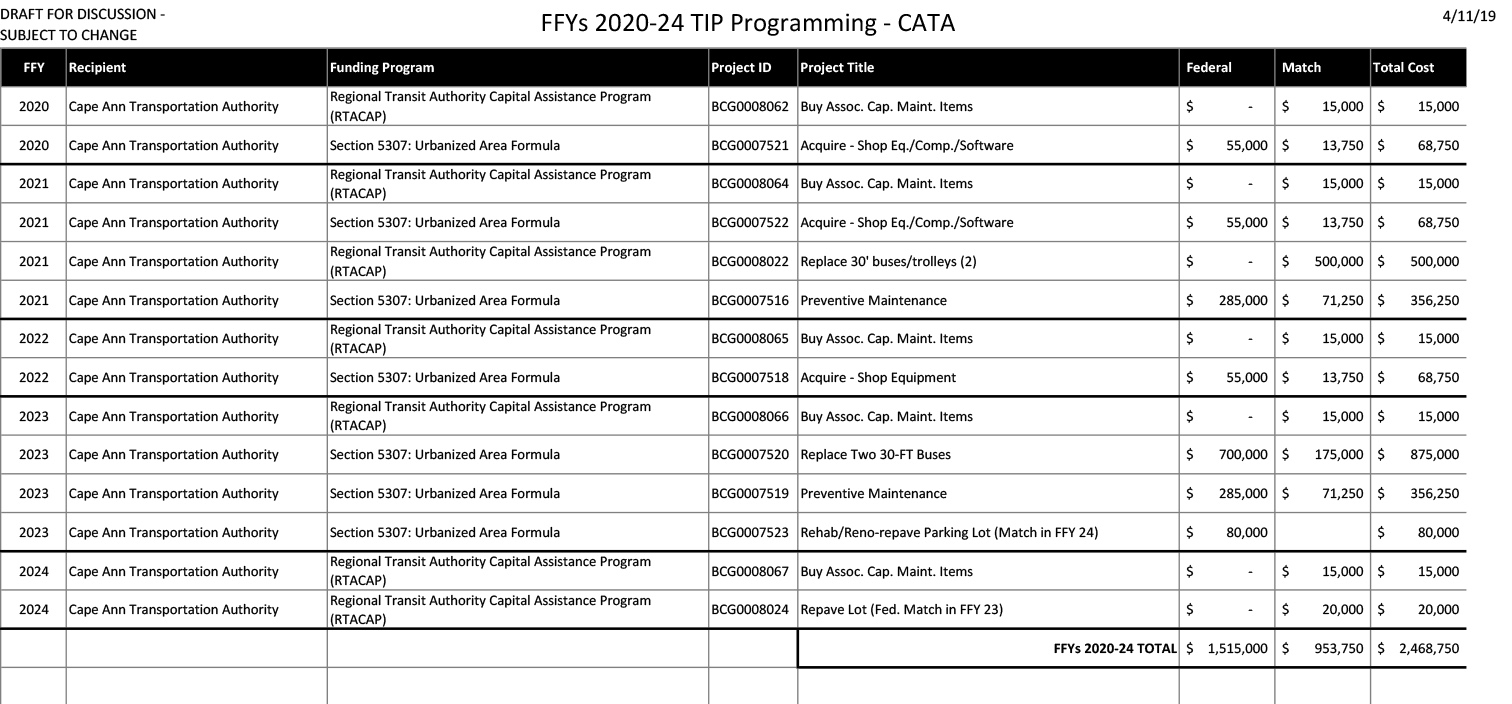

3-4:  Federal Fiscal Years 2020-24 Transportation Improvement Program MPO Transit List - CATA

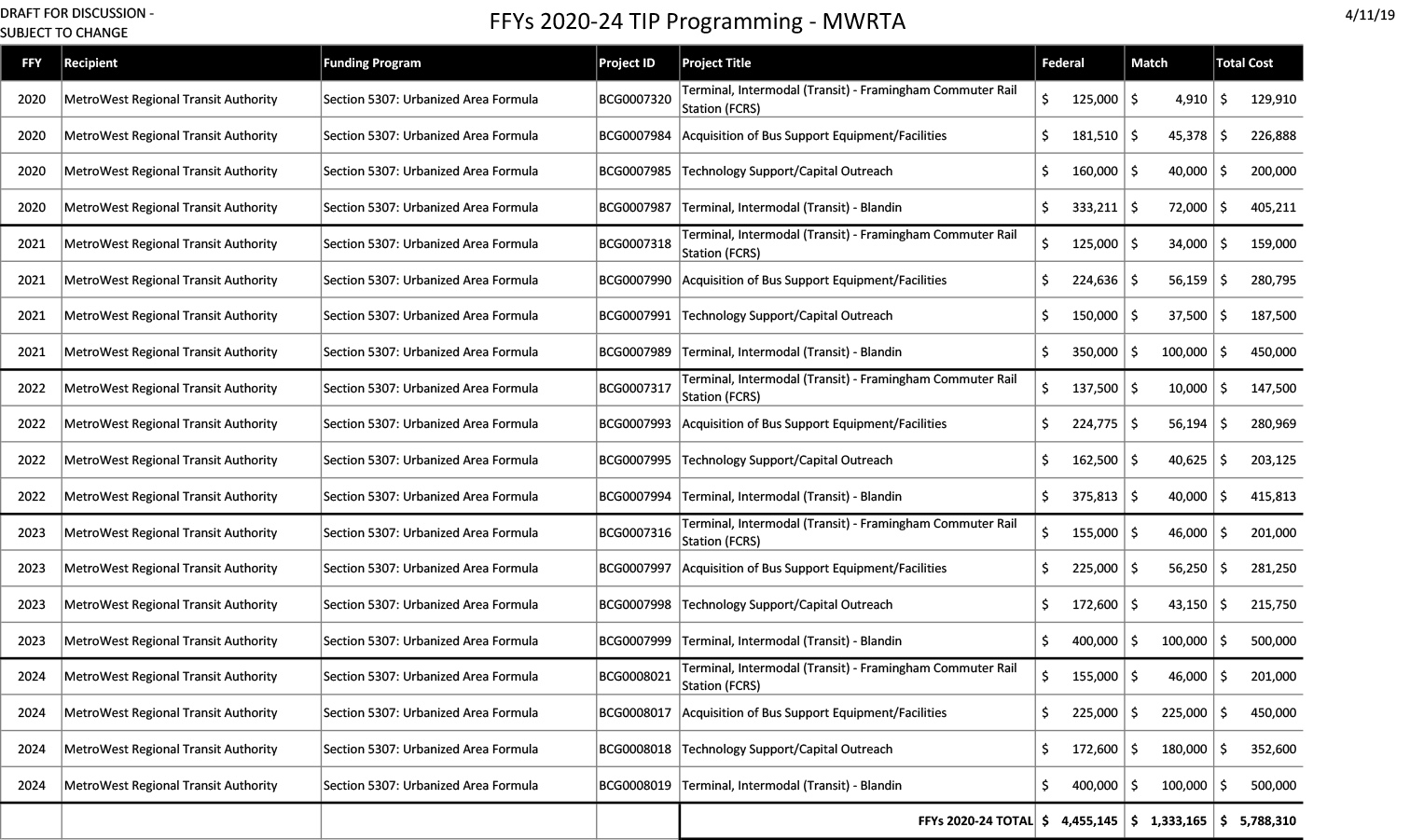

3-5:  Federal Fiscal Years 2020-24 Transportation Improvement Program MPO Transit List - MWRTA

4-1:  National and Boston Region MPO Goal Areas

4-2:  Federally Required Transit Performance Measures

4-3:  Federally Required Roadway Performance Measures

4-4:  Boston Region MPO Investment Summary

4-5:  MassDOT Investment Summary

4-6:  MBTA Investment Summary

4-7:  CATA and MWRTA Investment Summary

4-8:  Massachusetts Statewide Highway Safety Performance Baselines and CY 2019 Targets

4-9:  Regional Target Roadway Projects at Safety-Relevant Locations

4-10: Massachusetts and Boston Region NHS Bridge Condition Baselines

4-11: MassDOT NHS Bridge Condition Targets

4-12: Massachusetts NHS Pavement Condition Baselines and MassDOT NHS Pavement
Condition Performance Targets

4-13: Regional Target Projects Addressing Roadway System Preservation and
Modernization Performance

4-14: SFY 2018 Measures and SFY 2019 Targets for Transit Rolling Stock

4-15: SFY 2018 Measures and SFY 2019 Targets for Transit Equipment Vehicles

4-16: SFY 2018 Measures and SFY 2019 Targets for Transit Facilities

4-17: SFY 2018 Measures and SFY 2019 Targets for MBTA Transit Fixed Guideway Infrastructure

4-18: Travel Time Index Analysis for the Boston Region: 2012 to 2015

4-19: Travel Time Reliability Performance Targets

4-20: Truck Travel Time Reliability Performance Targets

4-21: Performance Targets for Annual Hours of Peak Hour Excessive Delay Per Capita for the Boston UZA

4-22: Performance Targets for Percent of Non-SOV Travel for the Boston UZA

4-23: Regional Target-Funded Roadway Projects Addressing Capacity Management and Mobility Performance

4-24: CMAQ Emissions Reduction Targets for the Boston Region

4-25: Regional Target-Funded Roadway Projects Addressing Clean Air and Sustainable Communities Performance

4-26: Regional Target-Funded Roadway Projects Addressing Economic Vitality Performance

4-27: Transportation Equity Populations in the Boston Region

4-28: Transportation Equity Populations within One-Half Mile of Regional Target-Funded Projects

4-29: MPO Investment Programs Serving Transportation Equity Populations

4-30: Funding per Person or Household for Transportation Equity Populations within One-Half Mile of Regional Target-Funded Projects

A-1:  Universe of Unprogrammed Projects (as presented to the Boston Region MPO board on February 7, 2019)

A-2:  TIP Project Evaluation Criteria

A-3:  TIP Project Evaluation Results

A-4:  Final Project Evaluation Results and First-Tier List

B-1:  Greenhouse Gas Regional Highway Project Tracking

B-2:  Greenhouse Gas Regional Transit Project Tracking

B-3:  Greenhouse Gas Regional Highway “Completed” Project Tracking

B-4:  Greenhouse Gas Regional Transit “Completed” Project Tracking

E-1:  Federal Highway Programming for Municipalities in the Boston Region FFYS 2020–24



Figure #

ES-1 FFYS 2020-24 TIP Regional Target Funding by Investment Program

ES-2 MPO Municipalities Containing FFYS 202024 TIP Program Projects by Community Type

1-1   Municipalities in the Boston Region

1-2   Boston Region MPO Organizational Chart

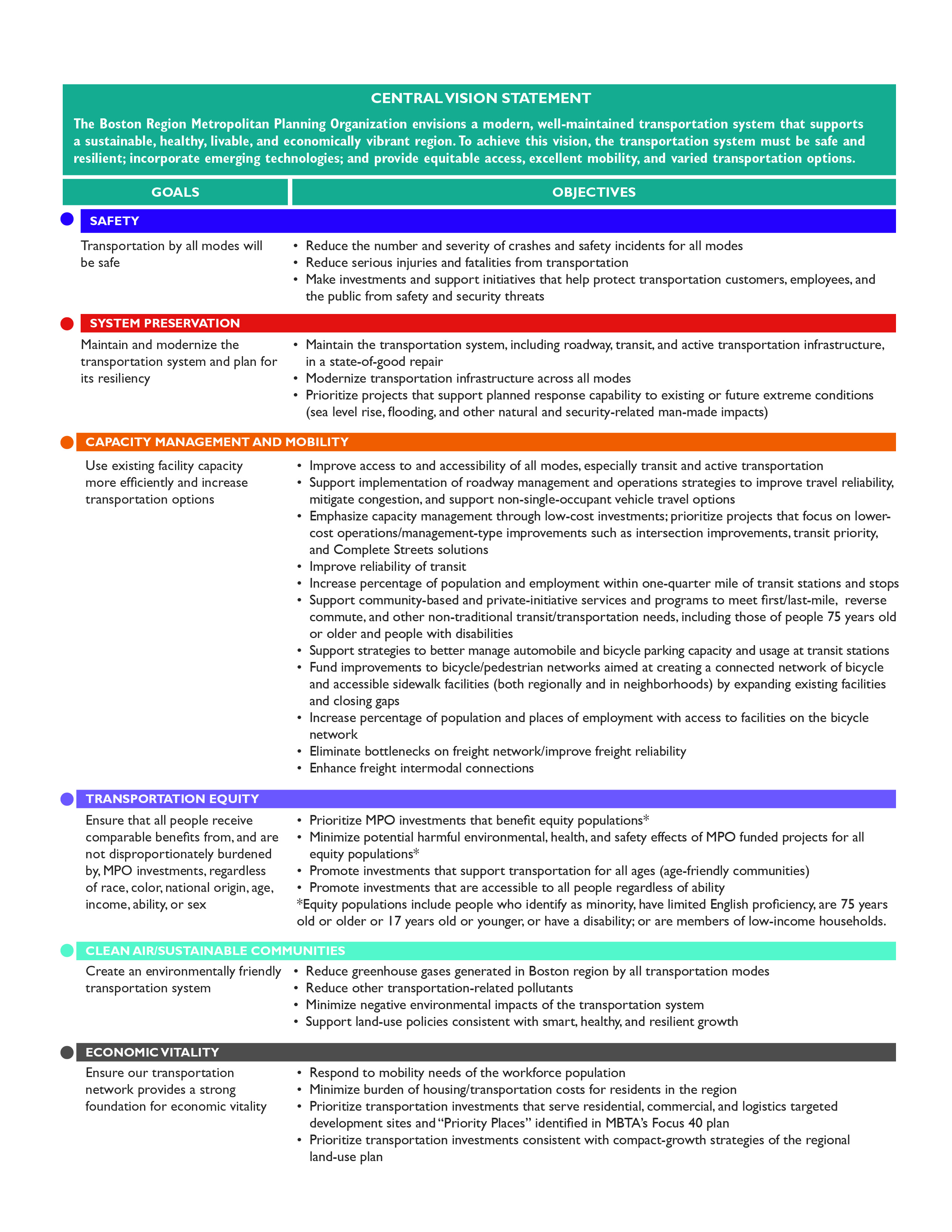

1-3   LRTP Goals and Objectives, as of Spring 2019

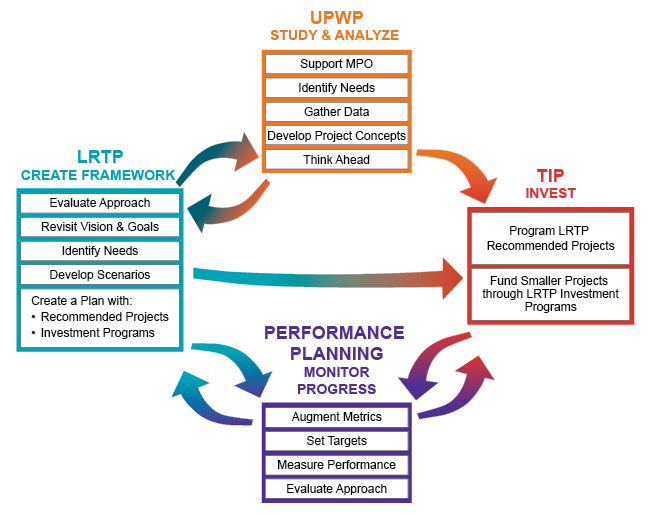

1-4   Relationship between the LRTP, TIP, UPWP, and Performance-Based Planning Process

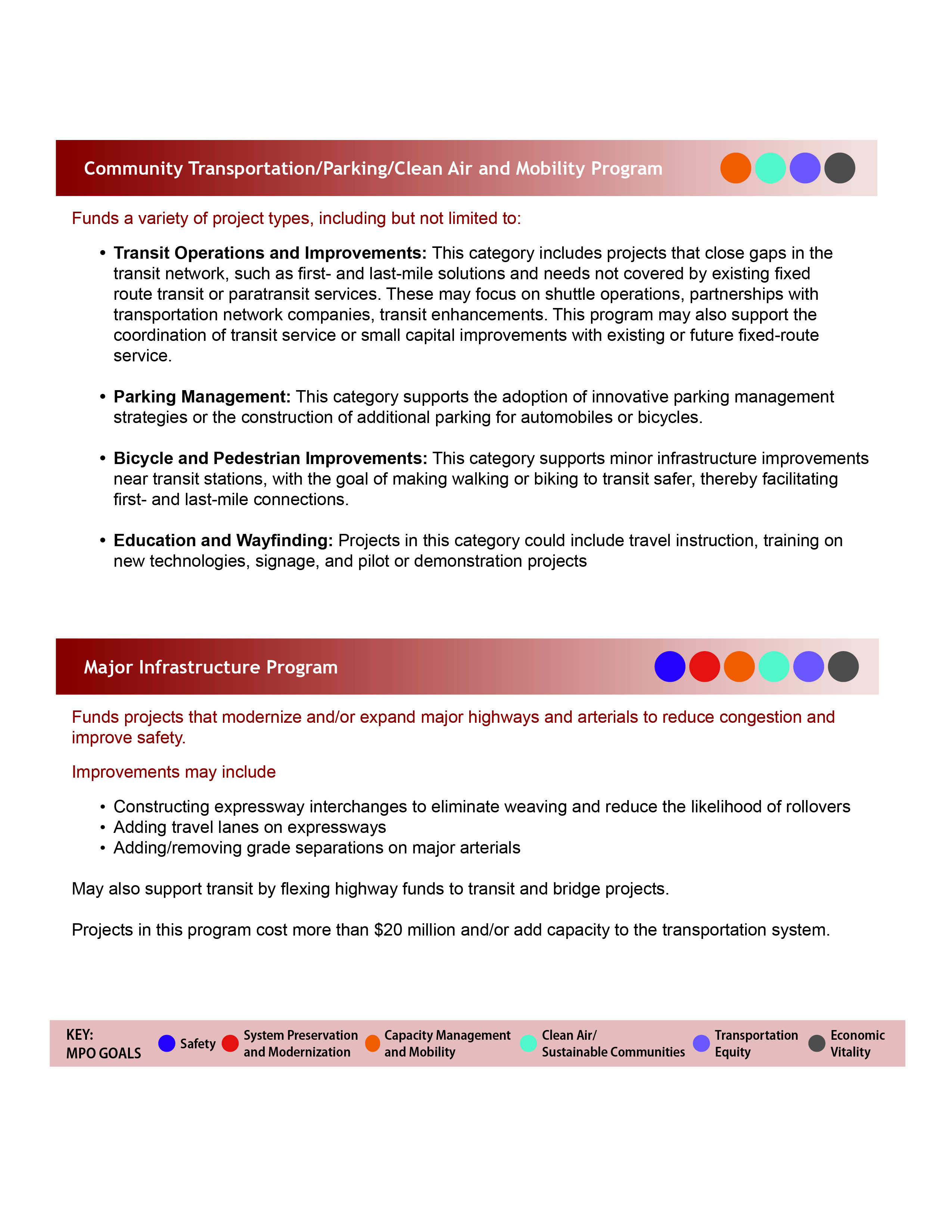

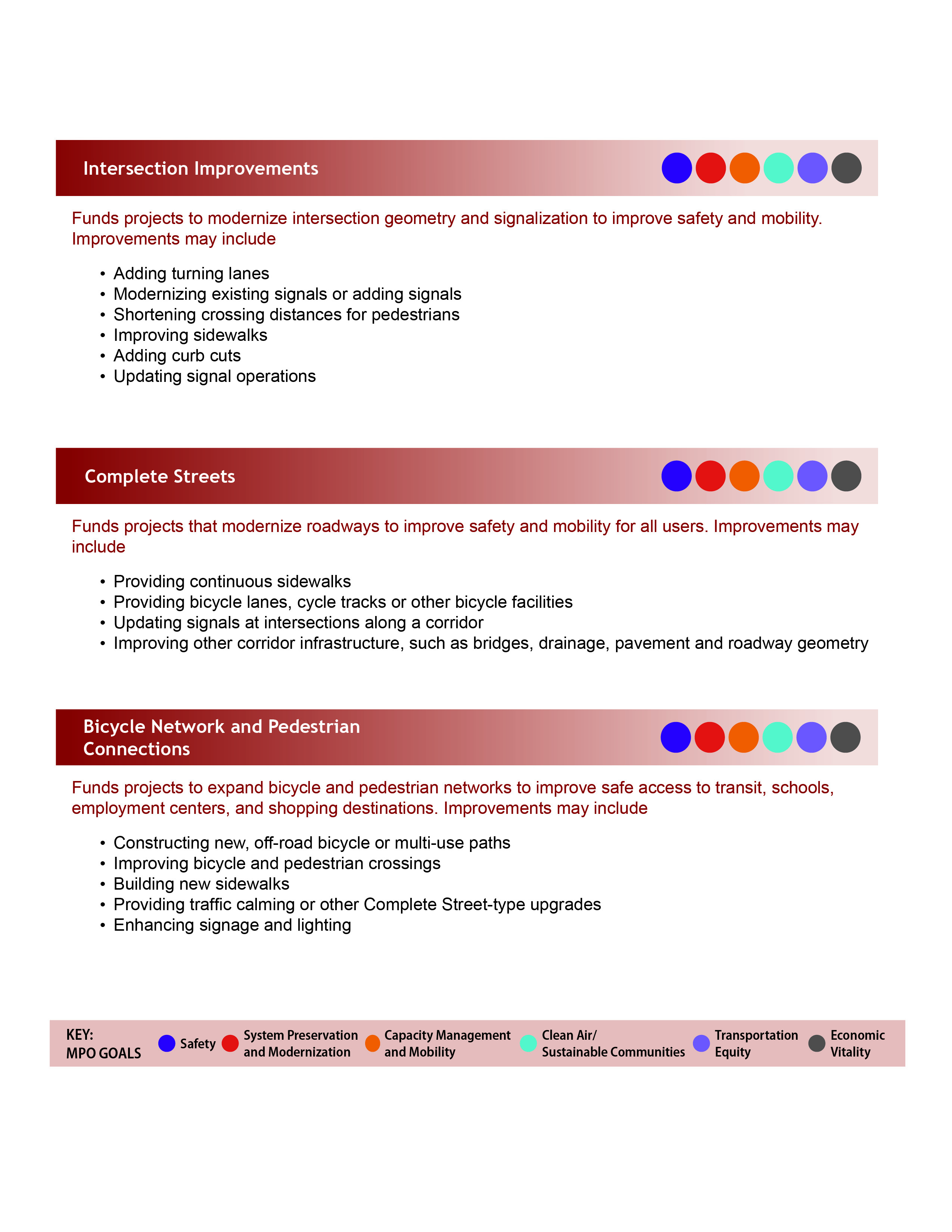

2-1:  MPO Investment Programs

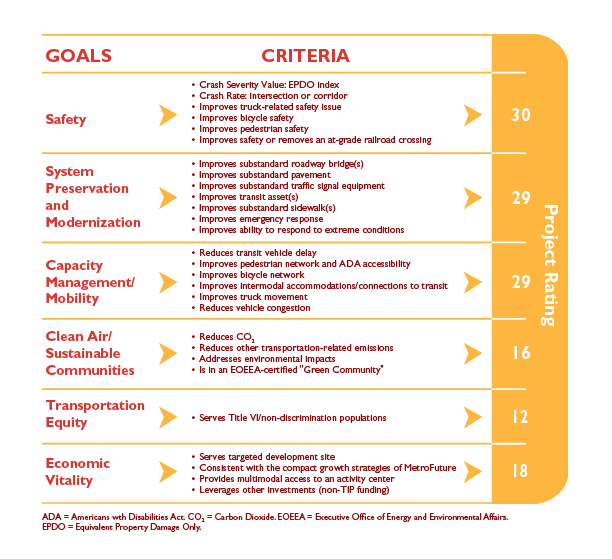

2-2:  Transportation Improvement Program Evaluation Criteria

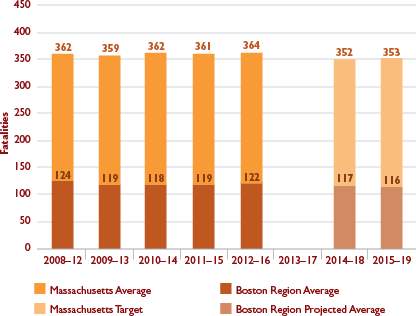

4-1:  Fatalities from Motor Vehicle Crashes

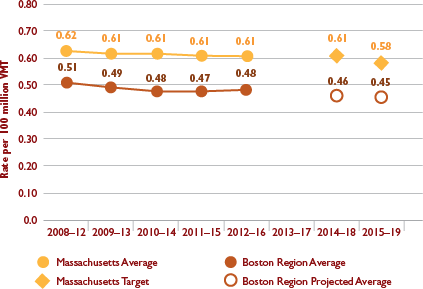

4-2:  Fatality Rate per 100 Million Vehicle-Miles Traveled

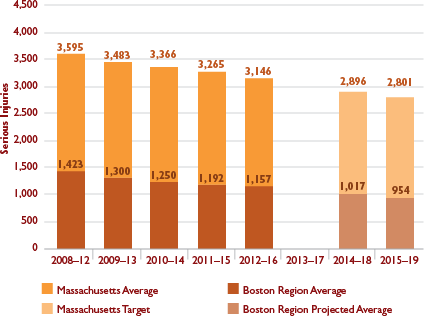

44-3: Serious Injuries from Motor Vehicle Crashes

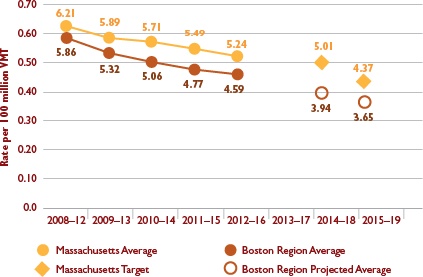

4-4:  Serious Injury Rate per 100 Million Vehicle-Miles Traveled

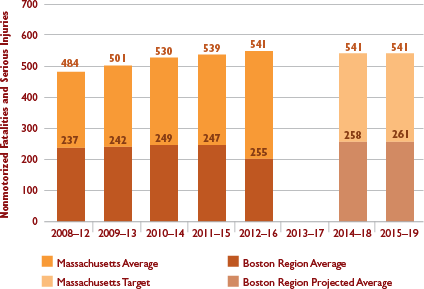

4-5:  Nonmotorized Fatalities and Serious Injuries

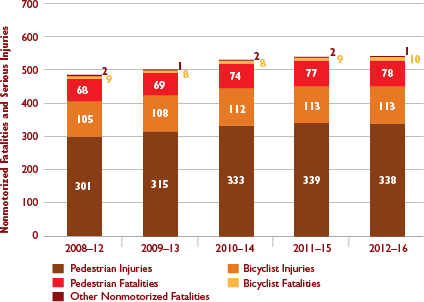

4-6:  Nonmotorized Fatalities and Serious Injuries in Massachusetts

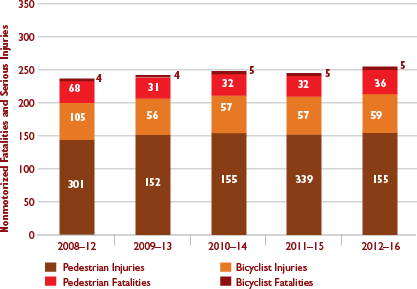

4-7:  Nonmotorized Fatalities and Serious Injuries in the Boston Region

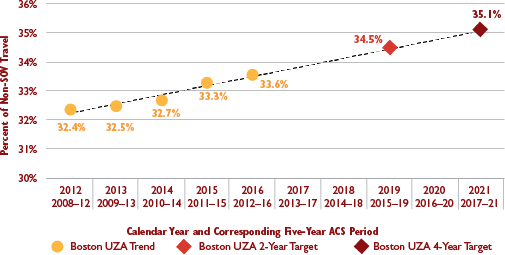

4-8:  Historic Values and Performance Targets for the Percent of Non-SOV Travel in the Boston UZA

E-1:  Regional Distribution of Target Funding by Subregion FFYS 2020–24

E-2:  Regional Distribution of Target Funding by Municipality Type FFYS 2020–24

E-3:  All Federal Highway Funding in the Boston Region by Subregion FFYS 2020–24

E-4:  All Federal Highway Funding in the Boston Region by Municipality Type FFYS 2020–24







Executive Summary—Federal Fiscal Years 2020-24 Transportation Improvement Program

Introduction

The Boston Region Metropolitan Planning Organization’s (MPO) five-year transportation capital investment plan, the Federal Fiscal Years (FFYs) 2020-24 Transportation Improvement Program (TIP), is the near-term investment program for the region’s transportation system. Guided by the Boston Region MPO’s vision, goals, and objectives, the TIP prioritizes investments that preserve the current transportation system in a state of good repair, provide safe transportation for all modes, enhance livability, and improve mobility throughout the region. These investments fund major highway reconstruction, arterial roadway and intersection improvements, maintenance and expansion of the public transit system, bicycle path construction, and infrastructure improvements for pedestrians.

The Boston Region MPO is guided by a 22-member board with representatives of state agencies, regional organizations, and municipalities; its jurisdiction extends roughly from Boston north to Ipswich, south to Marshfield, and west to municipalities along Interstate 495. Each year, the MPO conducts a process to decide how to spend federal transportation funds for capital projects. The Central Transportation Planning Staff (CTPS), which is the staff to the MPO, manages the TIP development process.

MPO staff coordinates the evaluation of project funding requests, proposes programming of current and new projects based on anticipated funding levels, supports the MPO in developing a draft TIP document, and facilitates a public review of the draft before the MPO endorses the final document.

ffys 2020-24 tip investments

The complete TIP program is available in Chapter 3 of this document and online at www.ctps.org/tip. The TIP tables provide details of how funding is allocated to each programmed project and capital investment program. These tables are organized by federal fiscal year, and are grouped by highway and transit programs.



Highway Program

The Highway Program of the TIP funds the priority transportation projects advanced by the Massachusetts Department of Transportation (MassDOT) and the cities and towns within the MPO region. The program is devoted primarily to preserving and modernizing the existing roadway network by resurfacing highways, replacing bridges, and reconstructing arterial roadways.

In Massachusetts, Federal-Aid Highway Program funding is apportioned by MassDOT, which allocates funding to Grant Anticipation Notes (GANs) payments, various statewide programs, and Regional Targets for the state’s MPOs. In the FFYs 2020–24 TIP, roadway, bridge, and bicycle and pedestrian programs account for more than $1.2 billion in funding to the Boston region. The Regional Target funding provided to the MPOs may be programmed for projects at the discretion of each MPO, whereas MassDOT has discretion to propose its recommended projects for statewide programs, such as those related to bridge repairs and interstate highway maintenance.



Transit Program

The Transit Program of the TIP provides funding for projects and programs that address the capital needs prioritized by the three transit authorities in the region: the Massachusetts Bay Transportation Authority (MBTA), the Cape Ann Transportation Authority (CATA), and the MetroWest Regional Transit Authority (MWRTA). The Transit Program is predominantly dedicated to achieving and maintaining a state of good repair for all assets throughout the transit system. The FFYs 2020–24 TIP includes $3.2 billion in transit investments by the transit authorities that will support state of good repair, modernize transit systems, and increase access to transit. The Green Line Extension project is a major project programmed in this TIP that will expand transit service. Additionally, during development of the FFYs 2020-24 TIP, the MPO decided to allocate a portion of the Regional Target funds in fiscal year 2021 to the MBTA for transit modernization.



regional target program details

During FFYs 2020–24, the Boston Region MPO plans to fund 47 projects and programs with its Regional Target funding:

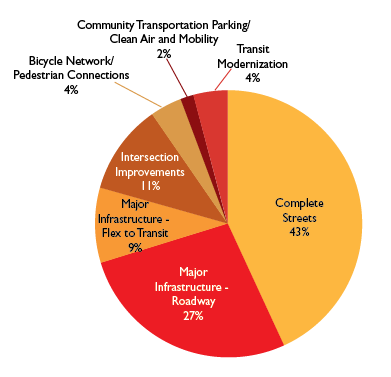

Figure ES-1 shows how the Regional Target funding for FFYs 2020–24 is distributed across the MPO’s investment programs. As the chart shows, the Boston Region MPO’s Regional Target Program is devoted primarily to modernizing and expanding the transportation network through Major Infrastructure and Complete Streets investments.



Figure ES-1
FFYS 2020-24 TIP Regional Target Funding by Investment Program

Boston Regional Target Program: $533.2 million



These investments will be implemented in 39 cities and towns throughout the MPO region, ranging from high-density, built-out inner core communities to developing suburbs. Figure ES-2 identifies the type of communities—as defined by the Metropolitan Area Planning Council (MAPC)—that will receive these investments.

FIGURE ES-2
MPO Municipalities Containing FFYS 2020–24 TIP Program Projects by Community Type



financing the ffys 2020-24 tip

Highway Program

The TIP Highway Program was developed with the assumption that federal funding for the state would range between $676 million and $739 million annually over the next five years (these amounts include only federal funds and include the funds that would be set aside as payments for the Accelerated Bridge Program).

The process of deciding how to use this federal funding in the Boston region follows several steps. First, MassDOT reserves funding for GANs debt service payments for the Accelerated Bridge Program; annual GANs payments range between $81 million and $98 million annually over the five years of this TIP.

The remaining Federal-Aid Highway Program funds are budgeted to support state priorities and regional (that is, MPO) priorities. In this planning cycle, $734 million to $792 million annually was available for programming statewide (these amounts include both federal dollars and the local match). MassDOT customarily provides the local match (which can also be provided by other entities); thus, projects are typically funded with 80 percent federal dollars and 20 percent state dollars, depending on the funding program.

Next, MassDOT allocates funding across the following funding categories:

Finally, once these needs have been satisfied, MassDOT allocates the remaining funding among the state’s MPOs for programming. This discretionary funding for MPOs is sub-allocated by formula to determine the Regional Target amounts. MassDOT develops these targets in consultation with the Massachusetts Association of Regional Planning Agencies (MARPA).

This TIP was programmed with the assumption that the Boston Region MPO will have between $102 million and $110 million annually for Regional Target amounts (which consist of federal funding and state funding for the local match).

Each MPO may decide how to prioritize its Regional Target funding. Given that the Regional Target funding is a subset of the Highway Program, the MPO typically programs the majority of funding for roadway projects; however, the MPO has flexed portions of its highway funding to the Transit Program for both transit expansion and transit modernization projects. The TIP Highway Program details the projects that will receive Regional Target funding from the Boston Region MPO and     statewide infrastructure projects within the Boston region.



Transit Program

The FTA allocates the funds programmed in the TIP Transit Program according to formula. The three regional transit authorities in the Boston Region MPO area that are recipients of these funds are the MBTA, CATA, and MWRTA. The MBTA, with its extensive transit program and infrastructure, is the recipient of the preponderance of the region’s federal transit funds.

Under the federal transportation legislation, Fixing America’s Surface Transportation Act (FAST Act), funding is allocated by the following categories:



the tip development process

Overview

When determining which projects to fund through the Regional Target funding process, MPO members collaborate with municipalities, state agencies, members of the public, advocacy groups, and other stakeholders. The MPO uses evaluation criteria in its project selection process to help identify and prioritize projects that advance the MPO’s goals, which are categorized as follows:

Additionally, the MPO has established investment programs, which are designed to direct Regional Target funding towards MPO priority areas over the next 25 years, to help meet these goals. The investment programs are as follows:

Projects that the MPO selects to receive Regional Target funding through the TIP development process are included in one of the five programs listed above.

In recent years, the MPO has been incorporating performance-based planning and programming (PBPP) practices into its TIP development and other processes. These practices are designed to help direct MPO funds towards achieving specific outcomes for the transportation system. The MPO’s goals and investment programs are key components of its PBPP framework. In FFY 2018, the MPO began to set targets for specific performance measures. Over time, the MPO will more closely link its performance targets, investment decisions, and monitoring and evaluation activities.

Outreach and Data Collection

The outreach process begins early in the federal fiscal year, when cities and towns designate TIP contacts and begin developing a list of priority projects to be considered for federal funding, and the MPO staff asks the staffs of cities and towns in the region to identify their priority projects.

MPO staff compiles the project funding requests into a Universe of Unprogrammed Projects, a list of all projects identified as potential candidates to receive funding through the TIP. The Universe includes projects that are fully designed and ready to be advertised for construction, those that are undergoing preliminary engineering and design, and projects still in the conceptual or planning stage. MPO staff also collects data on each project in the Universe so that the projects may be evaluated.



Project Evaluation

MPO staff evaluates projects based on how well they address the MPO’s goals. In order for MPO staff to conduct a complete project evaluation, the project must have a functional design report or be at a 25-percent design stage; or its plans must include the level of detail defined in a functional design report. The evaluation results are posted on the MPO’s website where project proponents, municipal officials, and members of the public may review them and provide feedback.

TIP Readiness Day

An important step toward TIP programming takes place midway through the TIP development cycle at a meeting—referred to as TIP Readiness Day—that both MassDOT and MPO staff attend. At this meeting, MassDOT project managers provide updates about cost and schedule changes related to currently programmed projects. These cost and schedule changes must be taken into account as MPO staff helps the MPO board consider updates to the already programmed years of the TIP, as well as the addition of new projects in the outermost year of the TIP.

Staff Recommendation and Draft TIP

Using the evaluation results and information about project readiness (that is, when a project likely would be fully designed and ready for construction), staff prepares the First-Tier List of Projects. This list contains those projects that are supported by a project proponent (a municipality or MassDOT) and that could be made ready for advertising within the TIP’s time horizon—the next five federal fiscal years. The projects are ranked based on the evaluation results.

MPO staff then prepares a recommendation or a series of programming scenarios for how to program the Regional Target funding in the TIP based on the First-Tier List of Projects and other considerations, such as whether a project was included in the LRTP, addresses an identified transportation need, or promotes distribution of transportation investments across the region.

The staff recommendation is always financially constrained—meaning, subject to available funding. There was approximately $533 million of Regional Target funding available to the Boston Region MPO for FFYs 2020–24. This year, the MPO discussed the staff recommendation and programming scenarios for the Regional Target Program for highway projects and selected a preferred program in March.

In addition to prioritizing the Regional Target funding, the MPO also reviews and endorses the Statewide Infrastructure Items and Bridge Programs that MassDOT recommends for programming. The MPO also reviews and endorses programming of funds for the MBTA’s, CATA’s, and MWRTA’s capital programs.

Approving the tip

After selecting a preferred programming scenario, usually in April, the MPO votes to release the draft TIP for a 21-day public review period, during which the MPO invites members of the public, municipal officials, and other stakeholders in the Boston region to review the proposed program. During the public review period, MPO staff hosts open-house style public meetings to discuss the draft TIP document and elicit additional comments.

After the public review period ends, the MPO reviews all municipal and public comments and may change elements of the document or its programming. The MPO then endorses the TIP and submits it to the Federal Highway Administration (FHWA) and the Federal Transit Administration (FTA) for approval. MassDOT incorporates the MPO-endorsed TIP into the State Transportation Improvement Program (STIP). The FHWA, FTA, and US Environmental Protection Agency review the STIP for certification by September 30, the close of the federal fiscal year.

updates to the tip

Even after the TIP has been finalized, administrative modifications, amendments, and adjustments often must be introduced because of changes in project status, project cost, or available revenues. This may necessitate reprogramming a project in a different funding year or programming additional funds for a project.

Notices of administrative modifications and amendments are posted on the MPO’s website. If an amendment is necessary, the Regional Transportation Advisory Council—the public advisory board to the MPO—is informed, and the MPO notifies affected municipalities and other stakeholders via email. The MPO typically holds a 21-day public review period before taking final action on an amendment. In extraordinary circumstances, the MPO may vote to shorten the public comment period to a minimum of 15 days. Administrative modifications and adjustments are generally minor and usually do not warrant a public review period.

stay involved with the tip

Public input is an important aspect of the transportation planning process. Please visit www.bostonmpo.org for more information about the MPO, to view the entire TIP, and to submit your comments. You also may wish to sign up for email news updates and notices by contacting publicinfo@ctps.org or signing up at www.ctps.org/subscribe.

To request a copy of the TIP in accessible formats, please contact the MPO staff by any of the following means:

Mail:               Boston Region MPO c/o CTPS

                        Certification Activities Group

                        10 Park Plaza, Suite 2150

                        Boston, MA  02116-3968

Telephone:    857.702.3700

TTY:                617.973.7089

Fax:                617.570.9192

Email:             publicinfo@ctps.org







Chapter 1—3C Transportation Planning and the Boston Region MPO

Decisions about how to allocate transportation funds in a metropolitan area are guided by information and ideas garnered from a broad group of people, including elected officials, municipal planners and engineers, transportation advocates, and interested residents. Metropolitan planning organizations (MPOs) are the bodies responsible for providing a forum for this decision-making process. Each metropolitan area in the United States with a population of 50,000 or more—also known as an urbanized area—is required by federal legislation to establish an MPO, which decides how to spend federal transportation funds for capital projects and planning studies for the area.



THE TRANSPORTATION PLANNING PROCESS

The federal government regulates the funding, planning, and operation of the surface transportation system through the federal transportation program, which was enacted into law through Titles 23 and 49 of the United States Code. Section 134 of Title 23 of the Federal-Aid Highway Act and Section 5303 of the Federal Transit Act, as amended, require that urbanized areas conduct a transportation planning process, resulting in plans and programs consistent with the planning objectives of the metropolitan area, in order to be eligible for federal funds.



The most recent reauthorization of the surface transportation law is the Fixing America’s Surface Transportation (FAST) Act. The FAST Act sets policies related to metropolitan transportation planning. The law requires all MPOs to carry out a continuing, comprehensive, and cooperative (3C) transportation planning process.



3C Transportation Planning

The Boston Region MPO is responsible for carrying out the 3C planning process in the Boston region and has established the following objectives for the process:





More information about the federal, state, and regional guidance governing the transportation planning process and about the regulatory framework in which the MPO operates can be found in Appendix F.



THE BOSTON REGION MPO

The Boston Region MPO’s planning area extends across 97 cities and towns from Boston north to Ipswich, south to Marshfield, and west to Interstate 495.

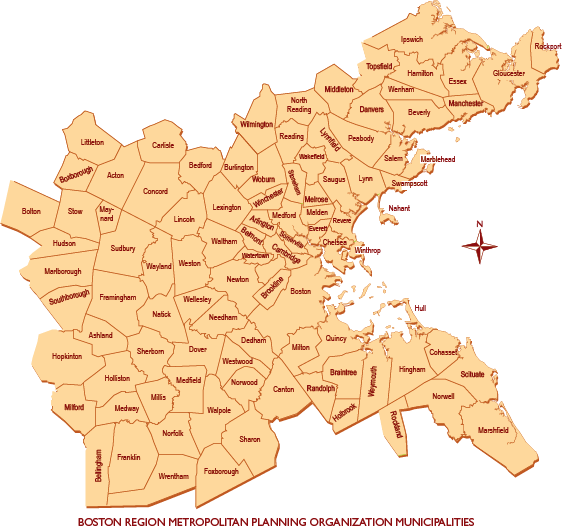

Figure 1-1 shows the map of the Boston Region MPO’s member municipalities.




Figure 1-1
Municipalities in the Boston Region



The MPO’s board comprises 22 voting members. Several state agencies and regional organizations and the City of Boston are permanent voting members, while 12 municipalities are elected as voting members for three-year terms. Eight municipal members represent each of the eight subregions of the Boston region, and there are four at-large municipal seats. The Federal Highway Administration (FHWA) and Federal Transit Administration (FTA) participate on the MPO board as advisory (nonvoting) members. More details about the MPO’s permanent members can be found in Appendix F.



Figure 1-2 shows MPO membership and the organization of the Central Transportation Planning Staff (CTPS), which serves as staff to the MPO.




Figure 1-2
Boston Region MPO Organizational Chart

MPO Central Vision Statement

The MPO board agreed upon the following vision statement on January 17, 2019, in preparation for the upcoming adoption of Destination 2040, the MPO’s next Long-Range Transportation Plan (LRTP):



The Boston Region MPO envisions a modern, well-maintained transportation system that supports a sustainable, healthy, livable, and economically vibrant region. To achieve this vision, the transportation system must be safe and resilient; incorporate emerging technologies; and provide equitable access, excellent mobility, and varied transportation options.



Certification Documents

As part of its 3C process, the Boston Region MPO annually produces the Transportation Improvement Program (TIP) and the Unified Planning Work Program (UPWP). These documents, along with the quadrennial LRTP, are referred to as certification documents and are required for the MPO’s process to be certified as meeting federal requirements; this certification is a prerequisite for receiving federal transportation funds. In addition to the requirement to produce the LRTP, TIP, and UPWP, the MPO must establish and conduct an inclusive public participation process, as well as maintain transportation models and data resources to support air quality conformity determinations and long- and short-range planning work and initiatives.



The following is a summary of each of the certification documents:









Figure 1-4 depicts the relationship between the three certification documents and the MPO’s performance-based planning and programming process, which is a means to monitor progress towards the MPO’s goals and continuously evaluate the MPO’s approach to achieving them.






Figure 1-3
LRTP Goals and Objectives, as of Spring 2019

Figure 1-4
Relationship between the LRTP, TIP, UPWP, and Performance-Based Planning Process







Chapter 2—The TIP Process

Introduction to the TIP Process

One of the most important decisions a metropolitan planning organization (MPO) faces is deciding how to allocate limited funds for transportation projects and programs. Transportation improvements are part of the solution to many critical regional, state, national, and even global problems, such as traffic congestion, air pollution, fatalities and injuries on roadways, climate change, and environmental injustice. Because there is not nearly enough funding available for all of the necessary and worthy projects that would address these problems, an MPO’s investment choices must be guided by policies that help identify the most viable and effective solutions.



As described in Chapter 1, the Boston Region MPO develops a Long-Range Transportation Plan (LRTP) and a Transportation Improvement Program (TIP) to prioritize the expenditure of federal funds on transportation projects. The MPO staff manages the development of both plans. The annual development process for the TIP involves evaluating project funding requests from municipalities and state transportation agencies. The MPO staff also proposes programming for new and ongoing projects based on anticipated yearly funding levels, supports the MPO board by creating a draft TIP document, and facilitates a public involvement process that affords the public an opportunity to comment on proposed projects and review the draft TIP before the MPO board endorses the final document.



Funding the TIP

Federal Funding Framework

The first step in allocating federal transportation funds is the passage by the United States Congress of a multi-year act that establishes a maximum level of federal transportation funding per federal fiscal year (FFY).1 The establishment of this level of funding is referred to as an authorization.



After the authorization level has been established, the United States Department of Transportation annually allocates funding among the states according to various federal formulas. This allocation is referred to as an apportionment. The annual apportionment rarely represents the actual amount of federal funds that are ultimately committed to a state because of federally imposed limitations on spending in a given fiscal year, referred to as the obligation authority. In Massachusetts, TIPs are developed based on the estimated obligation authority.



Federal Highway Program

The FFYs 2020-24 TIP’s Highway Program was developed with the assumption that funding from the Federal-Aid Highway Program for the Commonwealth of Massachusetts would range between approximately $676 million and $740 million annually over the next five years. These amounts include the funds that would be set aside initially by the Massachusetts Department of Transportation (MassDOT) as payments for the Accelerated Bridge Program and exclude required matching funds.



The process of deciding how to use this federal funding in the Boston region follows several steps. MassDOT first reserves funding for Grant Anticipation Notes (GANs) debt service payments for the Accelerated Bridge Program; annual GANs payments range between approximately $82 million and $99 million annually over the five years of this TIP.



The remaining Federal-Aid Highway Program funds are budgeted to support state and regional (i.e., MPO) priorities. In this TIP, there is a total of approximately $734 million to $793 million assumed to be annually available statewide for programming (these amounts include both federal dollars and the state-provided local match). MassDOT customarily provides the local match (which can also be provided by other entities); thus, projects are typically funded with 80 percent federal dollars and 20 percent state dollars, depending on the funding program.



Regional Targets

The Regional Targets are discretionary funds for MPOs, suballocated by formula to each metropolitan planning region. (The Boston Region MPO receives about 43 percent of the total funds available statewide for Regional Targets.) MassDOT developed the target formula in consultation with the Massachusetts Association of Regional Planning Agencies (MARPA).



Each MPO in the state can decide how to prioritize its Regional Target funding. Given that the Regional Target funding originates from the Federal-Aid Highway Program, the Boston Region MPO board typically programs the majority of its target funding on roadway projects; however, the MPO board has flexed portions of its TIP Highway Program funding to the TIP’s Transit Program, as when the MPO board gave its support to the Green Line Extension transit expansion project.



During the next five years, the Boston Region MPO’s total Regional Target funding will be approximately $533 million, an average of $107 million per year. To decide how to spend its Regional Target funding, the MPO engages its 97 cities and towns in an annual TIP development process.



Federal Highway Administration Programs

The Federal-Aid Highway Program dollars discussed in this section come through several Federal Highway Administration (FHWA) funding programs, each of which has unique requirements. Table 2-1 shows these programs, which come from the Fixing America’s Surface Transportation Act (FAST Act) and fund projects in the FFYs 2020–24 TIP.



Table 2-1
Federal Highway Administration Programs Applicable to the FFYs 2020-24 Transportation Improvement Program



FAST Act Program

Eligible Uses

Congestion Mitigation and Air Quality Improvement (CMAQ)

A wide range of projects to reduce congestion and improve air quality in nonattainment and maintenance areas for ozone, carbon monoxide, and particulate matter

Highway Safety Improvement Program (HSIP)

Implementation of infrastructure-related highway safety improvements

National Highway Performance Program (NHPP)

Improvements to interstate routes, major urban and rural arterials, connectors to major intermodal facilities, and the national defense network; replacement or rehabilitation of any public bridge; and resurfacing, restoring, and rehabilitating routes on the Interstate Highway System

Surface Transportation Block Grant Program (STBGP) [formerly the Surface Transportation Program (STP)]

A broad range of surface transportation capital needs, including roads; transit, sea, and airport access; and vanpool, bicycle, and pedestrian facilities

Transportation Alternatives Program (TAP)



A set-aside from the STBGP that funds the construction of infrastructure-related projects (for example, sidewalk, crossing, and on-road bicycle facility improvements)

Metropolitan Planning

Facilities that contribute to an intermodal transportation system, including intercity bus, pedestrian, and bicycle facilities

National Highway Freight Program (NHFP)

Projects that improve the efficient movement of freight on the National Highway Freight Network

Source: Federal Highway Administration.



Federal Transit Program

Federal aid for public transit authorities is allocated by formula to urbanized areas (UZAs). MassDOT is the recipient of this federal aid in the Boston UZA. In UZAs with populations greater than 200,000, such as the Boston UZA, the distribution formula factors in passenger-miles traveled, population density, and other factors associated with each transit provider. The three regional transit authorities (RTAs) in the Boston Region MPO area are the Massachusetts Bay Transportation Authority (MBTA), MetroWest Regional Transit Authority (MWRTA), and Cape Ann Transportation Authority (CATA). The MBTA, with its extensive transit program and infrastructure, is the recipient of the preponderance of federal transit funds in the region.



The Federal Transit Administration (FTA) distributes funding to transit agencies through several different programs. Table 2-2 shows FTA programs that come from the FAST Act and support transit investments in the FFYs 2020-24 TIP.



Table 2-2
Federal Transit Administration Programs Applicable to the FFYs 2020-24 Transportation Improvement Program

FAST Act Program

Eligible Uses

Urbanized Area Formula Grants (Section 5307)

Transit capital and operating assistance in urbanized areas

Fixed Guideway/Bus (Section 5337)

Replacement, rehabilitation, and other state-of-good-repair capital projects

Bus and Bus Facilities (Section 5339)

Capital projects to replace, rehabilitate, and purchase buses and related equipment, and to construct bus-related facilities

Enhanced Mobility of Seniors and Individuals with Disabilities (Section 5310)

Capital expenses that support transportation to meet the special needs of older adults and persons with disabilities

Fixed-Guideway Capital Investment Grants (Section 5309)

Grants for new and expanded rail, bus rapid transit, and ferry systems that reflect local priorities to improve transportation options in key corridors

 Source: Federal Transit Administration.

Investment Frameworks

MPO Investment Framework

As mentioned previously, each MPO in the state can decide how to prioritize the Regional Target funding it receives through the processes established by FHWA and MassDOT. The Boston Region MPO’s LRTP defines the investment framework that informs the specific investment decisions made in the TIP by establishing





MPO Goals and Objectives

The MPO’s goals and objectives provide the foundation for the TIP evaluation criteria the MPO board uses when selecting roadway projects to be funded with Regional Target dollars. MPO staff compares candidate projects’ characteristics to these criteria to evaluate whether individual projects can help the MPO advance its various goals. The criteria are based on the MPO’s goals and objectives, which were adopted for its current LRTP, Charting Progress to 2040.



MPO Investment Programs

In Charting Progress to 2040, the Boston Region MPO’s current LRTP, the MPO strengthened the link between its spending and improvements to transportation performance by establishing a series of investment programs. These investment programs focus on specific types of projects that the MPO expects will help achieve its goals and objectives for the transportation system. The MPO created these programs to give municipalities the confidence that if they design these types of projects the MPO will be willing to fund them through the LRTP and TIP:



The MPO allocates its Regional Target dollars to these investment programs by assigning them to TIP projects that meet the investment programs’ criteria. Figure 2-1 provides details about these investment programs and their relationship to the MPO’s goals.



Figure 2-1
 MPO Investment Programs

Other Funding Guidelines

When creating investment scenarios for Charting Progress to 2040, the MPO applied guidelines which were designed to strike a balance between large-scale projects that would be included in its Major Infrastructure program and lower cost, operations and management-type projects. (Major Infrastructure projects are those that cost more than $20 million or that add capacity to the transportation network). Such a balance would help the MPO address its goals and provide more opportunities for the MPO to distribute federal transportation dollars to projects throughout the region, as opposed to concentrating it in a few large-scale projects. Charting Progress to 2040 focused on investing federal transportation dollars over a 20-year period, but several guidelines are relevant to shorter-term TIP programming, including the following:





The MPO can consider LRTP-based guidelines such as these when determining how to program Regional Target funding over the relevant five-year period for the TIP.



3.1.2 MassDOT and Transit Agency Investment Frameworks

MassDOT, in coordination with the MBTA, updates its rolling five-year Capital Investment Plan (CIP) on an annual basis. This planning document identifies priority roadway, transit, bridge, and statewide infrastructure projects for the five MassDOT divisions and the MBTA. The CIP process uses a framework that prioritizes funding according to MassDOT’s strategic goals (listed in descending order of priority):



MassDOT and the MBTA have created investment programs for the CIP that relate to these strategic goals, and allocate funding to these goals and programs in ways that emphasize their priority.



The MBTA’s major expansion program is for the Green Line Extension.



Other program areas discussed in the CIP include:





The regional transit authorities (RTAs) in the Boston region—the MetroWest Regional Transit Authority (MWRTA) and the Cape Ann Transportation Authority (CATA)—coordinate with the MassDOT Rail and Transit Division to develop their capital programs, the federally funded components of which are reflected in the CIP according to the framework described above.

The MPO’s TIP reflects federally funded MassDOT, MBTA, and RTA investments in the CIP that will be made in the Boston region. MassDOT’s Rail and Transit Division also distributes FTA Section 5310 funds and other funds to other transit providers in the region—these investments, when programmed, are reflected in the TIP as well.



Developing the TIP

Project Selection Process

Overview

The MPO applies its investment framework when developing the TIP. The MPO board’s process for selecting projects to receive highway discretionary—or Regional Target—funding relies on evaluation criteria to help identify and prioritize projects that advance the MPO’s goals. The criteria are based on the MPO’s goals and objectives, which were adopted for Charting Progress to 2040. All projects are required to show consistency with the LRTP and other statewide and regional plans. Other considerations include the readiness of a project for construction and municipal support for the project. Background information about the TIP project evaluation process is presented in Appendix A. Following adoption of the next LRTP, Destination 2040, in June 2019, the TIP evaluation criteria will be reviewed to determine if any changes or improvements are necessary to enhance alignment with the MPO’s revised goals and objectives, or to reflect up-to-date best practices in performance-based planning.



Outreach and Data Collection (October–December)

The TIP development process begins early in the federal fiscal year when cities and towns in the region designate staff as TIP contacts and begin developing a list of priority projects to be considered for federal funding. Each fall, the MPO staff asks these TIP contacts to identify their city or town’s priority projects and then the MPO staff elicits input from interested parties and members of the general public.



New projects must be initiated by the MassDOT Highway Division before they can be considered for programming in the TIP. MassDOT details the project initiation process and posts relevant documents on its Project Review Committee’s webpage, www.massdot.state.ma.us/highway/Departments/ProjectManagement/ProjectReviewCommittee.aspx



Municipal TIP Contacts and the MPO staff coordinate to update each project’s Project Funding Application Form through the MPO’s Interactive TIP Database, www.bostonmpo.org/apps/tip11/tip_query.html, which summarizes information about each project's background, infrastructure condition and needs, development status, and ability to help the region attain the MPO’s goals and objectives.



The MPO staff compiles the project funding requests into a Universe of Unprogrammed Projects list, which consists of all identified projects being advanced for possible funding. The Universe includes projects that are fully designed and ready to be advertised for construction, those that are undergoing preliminary engineering and design, and projects still in the conceptual planning stage.



The MPO staff also monitors the anticipated greenhouse gas (GHG) emissions that would result from each project in order to consider these impacts when prioritizing transportation investments. For more information on GHG emission monitoring and evaluation, see Appendix B.



Project Evaluation (December–February)

The MPO staff uses its project evaluation criteria to logically and transparently evaluate and select projects for programming in the TIP that advance the MPO’s vision for transportation. This process favors projects that support the following goals:



The project evaluation scoring methodology consists of 28 criteria that support the six goals and related objectives of the MPO’s LRTP. A list of the TIP evaluation criteria (on the following pages) provides an overview of the goals, criteria, and scoring values.

In order for the MPO staff to conduct a complete project evaluation, the project must have a functional design report or be at a 25 percent design stage, or its plans must include the level of detail defined in a functional design report. See MassDOT’s Project Development and Design Guide for information about the contents of a functional design report. This guide is available at www.massdot.state.ma.us/highway/DoingBusinessWithUs/ManualsPublicationsForms/ProjectDevelopmentDesignGuide.aspx.



The summary of evaluation results for projects considered for programming in this TIP is available in Appendix A. The table contains the total project rating for each project. For more details about the evaluation criteria used to score projects, see Appendix A.



TIP Readiness Day (February)

The MPO staff meets with members of the MassDOT Highway Division and MassDOT District project managers to review cost and schedule changes related to currently programmed projects, which are undergoing design review, permitting, and right-of-way acquisition. The MPO board then considers these updated project construction costs and changes to the expected dates for construction advertisement when making decisions about changes to TIP programming. These changes have an impact on the ability of the MPO to program its target funds for new projects in the five-year TIP.



Staff Recommendation and Project Selection (March–April)

Using the evaluation ratings and information gathered about project readiness (when a project likely would be fully designed and ready for construction), staff prepares a First-Tier List of Projects. This list cites the projects that both earned the highest ratings in the MPO’s evaluation process and that could be made ready for advertising within the TIP’s time horizon—the next five FFYs.



The MPO staff strongly considers the First-Tier List of Projects when preparing a recommendation to the MPO for projects to program in the TIP. Other considerations for project selection include whether a project was programmed in the LRTP, LRTP-based guidelines for allocating funds to different programs or project types, distribution of investments across the region, and availability of sufficient funding.



Figure 2-2
Transportation Improvement Program Evaluation Criteria

Selection Process for State and Transit Agency Prioritized Projects

As discussed above, the selection of transit, bridge, and statewide infrastructure projects for programming in the TIP draws primarily from MassDOT’s Capital Investment Plan (CIP). MassDOT and the MBTA select individual projects for inclusion in CIP programs using a process recommended by the independent Project Selection Advisory Council (PSAC) and/or based on data from asset management systems maintained by MassDOT or MBTA divisions. The following criteria from the PSAC process guide project selection:





Projects that receive the highest priority are those that meet MassDOT’s goals for maintaining and improving the overall condition and reliability of the system; modernizing the system to make it safer and more accessible and to accommodate growth; and expanding and diversifying transportation options for communities. These project prioritization processes may also reflect other planning initiatives, such as Focus40, the MBTA’s 25-year investment plan.



As discussed above, the transit element of the TIP also includes the Federal-Aid Programs of the other two RTAs in the region, CATA and MWRTA.



Once selection processes are complete, these agencies submit their lists of bridge projects, statewide infrastructure items, and transit capital projects to the MPO for review.



Approving the TIP

Approval of Draft TIP for Public Review

The MPO board considers the project evaluation results, First-Tier List of Projects, and staff recommendation when prioritizing projects for Regional Target funding. The body also considers public comments, the regional importance of projects, and other factors. In addition to prioritizing the Regional Target funding, the MPO board reviews statewide infrastructure items, the Bridge Program, and the capital programs for the MBTA, CATA, and MWRTA before voting to release a draft TIP for public review.



The MPO board votes to release the draft document for public review and invites members of the public, municipal officials, and other stakeholders in the Boston region to review the proposed TIP. The MPO staff hosts outreach events during the public review period to elicit comments on the draft document (see Appendix C).



Approval of the Draft TIP

After the public review period ends, the MPO staff and board review all municipal and public comments, and the board may change the programming or the document as appropriate before endorsing the TIP. MassDOT staff incorporates the MPO-endorsed TIP into the State Transportation Improvement Program (STIP) and submits it to the FHWA and FTA for approval. The FHWA, FTA, and US Environmental Protection Agency review the STIP and certify it by September 30, the end of the federal fiscal year.



Updating the TIP

The TIP is a dynamic program that may be amended and adjusted throughout the year. Administrative modifications and amendments are often introduced because of changes in project status (advertisement readiness), project cost, project design scope, or available revenue. An amendment is a revision that requires public review and a demonstration of fiscal constraint.



Consistent with federal guidelines, the Boston Region MPO must release an amendment if there is (1) a change in project cost of $500,000 or more, for projects valued at $5 million or less, or (2) a change of 10 percent or more of the project cost, for projects valued greater than $5 million. Cost changes that are less than these threshold amounts may be considered in the form of administrative modifications or adjustments, which must still undergo MPO board action for approval. Although a public review period is not required for administrative modifications or adjustments, one may be offered at the MPO board’s discretion.



All proposed amendments are presented in a public setting at an MPO meeting, and details are posted on the MPO’s website, bostonmpo.org. Public notices are distributed through the MPO’s email contact list, which members of the public may join by signing up on the MPO’s website. TIP contacts at the affected municipalities and the public are notified of pending amendments at the start of an amendment’s public review period.



Public Notice

Notices of draft TIP amendments include a summary of the amendment’s contents, dates of the public review period, contact information for submitting a comment to the MPO, and the date, time, and location that the MPO will vote on that amendment. Also during the public review period, the MPO staff notifies and briefs the Regional Transportation Advisory Council about the amendment and relays comments from the Advisory Council, if any, to the MPO board. Municipal representatives and members of the public are invited to submit written or oral testimony at the MPO meetings at which amendments are discussed or voted upon.



The MPO typically holds a 21-day public review period before taking final action on an amendment. In extraordinary circumstances, the MPO may vote to shorten the public review period to a minimum of 15 days. (These circumstances are detailed in the MPO’s Public Participation Plan.)



The MPO’s website is the best place to find current information about the TIP. All changes to the draft TIP and changes to the endorsed TIP, such as amendments and modifications that have been approved by the MPO, are available on the TIP webpage on the MPO’s website, bostonmpo.org/tip.



Comments or questions about the draft TIP materials may be submitted directly to the MPO staff via the website, email, or US mail, or voiced at MPO meetings and other public MPO events.







1 The most recent authorization act, Fixing America’s Surface Transportation Act (FAST Act), was signed into law on December 4, 2015.



Chapter 3
Summary of Highway and Transit Programming

The Transportation Improvement Program (TIP) tables included in this chapter present a listing of all the projects and programs funded with federal highway and transit aid in the Boston region during federal fiscal years (FFYs) 2020–24. These funding tables are also included as part of the State Transportation Improvement Program (STIP).

Table 3-1 presents a summary of the Boston Region Metropolitan Planning Organization’s (MPO) share of Regional Target funds from the Federal-Aid Highway Program. The allocation of these funds is constrained by projections of available federal aid. As shown in Table 3-1, the MPO has programmed these discretionary funds within the limits of projected funding for highway funding programs. As such, the FFYs 2020–24 TIP Regional Target Program complies with financial constraint requirements. The details of this funding and the specific projects programmed with Regional Target funding are shown in Section 1A of each annual element of the TIP tables (Table 3- 2). Section 1A includes the regionally prioritized projects funded during a given federal fiscal year. The other sections in Table 3-2 (sections 1B, 2A, 2B, 2C, 3, and 4) list the following:
Projects funded with earmarks or discretionary grant funds
State-prioritized bridge repairs and rehabilitation, pavement maintenance, safety improvements, retrofits for accessibility (as required by the Americans with Disabilities Act), intersection improvements, roadway reconstruction, and bicycle and pedestrian projects
Projects funded by sources other than federal aid
Each annual element of Table 3-2 also lists the federally funded transit projects and programs in the Boston region that the Massachusetts Bay Transportation Authority (MBTA), MetroWest Regional Transit Authority, and Cape Ann Transportation Authority plan to undertake. Tables 3-3 and 3-4 provide additional information related to the MBTA’s programs and projects planned in the region.

The second part of the chapter includes detailed descriptions of projects, including evaluation scores (for projects funded by the MPO’s Regional Target Program), project proponents, and funding details. The pages are organized alphabetically by the municipality in which each project is located.

Table 3-1
Boston Region MPO Regional Target Program
MPO Discretionary Funds Sourced from the Federal-Aid Highway Program

Regional Target Program

FFY 2020

FFY 2021

FFY 2022

FFY 2023

FFY 2024

Total

Regional Target Obligation Authority

$102,478,656

$104,552,877

$106,681,829

$109,011,849

$110,440,638

$533,165,849

Regional Target Funds Programmed

$102,478,656

$104,552,877

$106,681,829

$109,011,849

$110,440,638

$533,165,848

Regional Target Funds Unprogrammed

$0

$0

$0

$0

$0

$1



Table 3-2
Federal Fiscal Years 2020-24 Transportation Improvement Program

2020 Boston Region Transportation Improvement Program

Amendment /
Adjustment Type ▼
STIP                             Program ▼ MassDOT Project ID Metropolitan Planning Organization ▼ Municipality Name ▼ MassDOT                                                                                                              Project                                                                                               Description MassDOT  District Funding                       Source Total Programmed                Funds Federal                    Funds Non-Federal                        Funds Additional Information ▼                                   Present information as follows, if applicable: a) Planning / Design / or Construction; b) total project cost and funding sources used; c) advance construction status; d) MPO project score; e) name of entity receiving a transfer; f) name of entity paying the non-state non-federal match; g) earmark details; h) TAP project proponent; i) other information
►Section 1A / Regionally Prioritized Projects
►Regionally Prioritized Projects
      Boston Region          $                    -    $                    -    $                        -
Regionally Prioritized Projects subtotal ►  $                    -    $                    -    $                        -   ◄ Funding Split Varies by Funding Source
►Section 1A / Fiscal Constraint Analysis
Total Regional Federal Aid Funds Programmed ►  $                    -    $   102,478,656 ◄Total Budget  $        102,478,656 Target Funds Available
Section 1A instructions: MPO Template Name) Choose Regional Name from dropdown list to populate header and MPO column; Column C) Enter ID from ProjectInfo; Column E) Choose Municipality Name from dropdown list; Column H) Choose the Funding Source being used for the project - if multiple funding sources are being used enter multiple lines; Column I) Enter the total amount of funds being programmed in this fiscal year and for each funding source; Column J) Federal funds autocalculates. Please verify the amount and only change if needed for flex. Column K) Non-federal funds autocalculates. Please verify the split/match - if matching an FTA flex, coordinate with Rail & Transit Division before programming; Column L) Enter Additional Information as described - please do not use any other format. STBG programmed ►  $                    -    $                    -   STBG
HSIP programmed ►  $                    -    $                    -   HSIP
CMAQ programmed ►  $                    -    $                    -   CMAQ
TAP programmed ►  $                    -    $                    -   TAP

►Section 1B / Earmark or Discretionary Grant Funded Projects
►Other Federal Aid
      Boston Region   Other Federal Aid   HPP  $                    -    $                    -    $                        -
Other Federal Aid subtotal ►  $                    -    $                    -    $                        -   ◄ Funding Split Varies by Funding Source

►Section 2A / State Prioritized Reliability Projects
►Bridge Program / Inspections
  Bridge Program   Boston Region   Bridge Inspection      $                    -    $                    -    $                        -
Bridge Program / Inspections subtotal ►  $                    -    $                    -    $                        -   ◄ Funding Split Varies by Funding Source
►Bridge Program / Off-System
  Bridge Program   Boston Region   Bridge Program / Off-System      $                      -  $                    -    $                        -
Bridge Program / Off-System subtotal ►  $                    -    $                    -    $                        -   ◄ 80% Federal + 20% Non-Federal
►Bridge Program / On-System (NHS)
  Bridge Program 604173 Boston Region Boston BOSTON- BRIDGE REPLACEMENT, B-16-016, NORTH WASHINGTON STREET OVER THE BOSTON INNER HARBOR 6 NHPP-On  $        26,291,954  $        21,033,563  $              5,258,391 AC Year 4 of 6, Total Cost $176,318,433
  Bridge Program 605342 Boston Region Stow STOW- BRIDGE REPLACEMENT, S-29-001, (ST 62) GLEASONDALE ROAD OVER THE ASSABET RIVER 3 NHPP-On  $          6,706,560  $         5,365,248  $              1,341,312
  Bridge Program 605287 Boston Region Chelsea CHELSEA- ROUTE 1 VIADUCT REHABILITATION (SB/NB) ON C-09-007 & C-09-011 6 NHPP-On  $        39,152,831  $        31,322,265  $              7,830,566 AC Year 3 of 4, Total Cost $213,972,689
  Bridge Program 604952 Boston Region Multiple LYNN- SAUGUS- BRIDGE REPLACEMENT, L-18-016=S-05-008, ROUTE 107 OVER THE SAUGUS RIVER (AKA - BELDEN G. BLY BRIDGE) 4 NHPP-On  $        14,694,121  $        11,755,297  $              2,938,824 AC Year 2 of 5, Total Cost $84,253,135
  Bridge Program   Boston Region   Bridge Program / On-System (NHS)      $                    -    $                    -    $                        -
Bridge Program / On-System (NHS) subtotal ►  $     86,845,466  $     69,476,373  $         17,369,093 ◄ Funding Split Varies by Funding Source
►Bridge Program / On-System (Non-NHS)
  Bridge Program   Boston Region   Bridge Program / On-System (Non-NHS)      $                      -  $                    -    $                        -
Bridge Program / On-System (Non-NHS) subtotal ►  $                    -    $                    -    $                        -   ◄ 80% Federal + 20% Non-Federal
►Bridge Program / Systematic Maintenance
  Bridge Program   Boston Region   Bridge Program / Systematic Maintenance      $                      -  $                    -    $                        -
Bridge Program / Systematic Maintenance subtotal ►  $                    -    $                    -    $                        -   ◄ Funding Split Varies by Funding Source
►Interstate Pavement
  Interstate Pavement   Boston Region   Interstate Pavement      $                    -    $                    -    $                        -
Insterstate Pavement subtotal ►  $                    -    $                    -    $                        -   ◄ 90% Federal + 10% Non-Federal
►Non-Interstate Pavement
  Non-Interstate Pavement 609101 Boston Region Peabody PEABODY - PAVEMENT PRESERVATION AND RELATED WORK ON ROUTE 128 4 NHPP  $          5,025,000  $         4,020,000  $              1,005,000
  Non-Interstate Pavement 609102 Boston Region Multiple WENHAM - GLOUCESTER - PAVEMENT PRESERVATION AND RELATED WORK ON ROUTE 128 4 NHPP  $        13,083,840  $        10,467,072  $              2,616,768
  Non-Interstate Pavement 608482 Boston Region Multiple CAMBRIDGE-SOMERVILLE RESURFACING AND RELATED WORK ON ROUTE 28 Multiple NHPP  $          7,080,000  $         5,664,000  $              1,416,000
  Non-Interstate Pavement   Boston Region   Non-Interstate Pavement      $                    -    $                    -    $                        -
Non-Interstate Pavement subtotal ►  $     25,188,840  $     20,151,072  $           5,037,768 ◄ 80% Federal + 20% Non-Federal
► Roadway Improvements
  Roadway Improvements 609222 Boston Region Arlington ARLINGTON - SPY POND SEDIMENT REMOVAL 4 STBG  $            950,000  $            760,000  $                190,000
  Roadway Improvements   Boston Region   Roadway Improvements      $                    -    $                    -    $                        -
Roadway Improvements subtotal ►  $          950,000  $          760,000  $              190,000 ◄ 80% Federal + 20% Non-Federal
► Safety Improvements
  Safety Improvements 608611 Boston Region Multiple CANTON- MILTON- RANDOLPH- REPLACEMENT AND REHABILITATION OF THE HIGHWAY LIGHTING SYSTEM AT THE ROUTE 24/ROUTE 1/I-93 INTERCHANGE 6 NHPP  $          8,735,250  $         6,988,200  $              1,747,050
  Safety Improvements 608608 Boston Region Braintree BRAINTREE- HIGHWAY LIGHTING IMPROVEMENTS AT I-93/ROUTE 3 INTERCHANGE 6 HSIP  $          2,688,726  $         2,419,853  $                268,873 AC Year 2 of 2
  Safety Improvements 608205 Boston Region Multiple READING TO LYNNFIELD- GUIDE AND TRAFFIC SIGN REPLACEMENT ON A SECTION OF I-95 (SR 128) 4 HSIP  $          4,500,000  $         4,050,000  $                450,000
  Safety Improvements   Boston Region   Safety Improvements      $                    -    $                    -    $                        -
Safety Improvements subtotal ►  $     15,923,976  $     13,458,053  $           2,465,923 ◄ Funding Split Varies by Funding Source
►Section 2B / State Prioritized Modernization Projects
► ADA Retrofits
  ADA Retrofits   Boston Region   ADA Retrofits      $                    -    $                    -    $                        -
ADA Retrofits subtotal ►  $                    -    $                    -    $                        -   ◄ 80% Federal + 20% Non-Federal
►Intersection Improvements
  Intersection Improvements   Boston Region   Intersection Improvements      $                    -    $                    -    $                        -
Intersection Improvements subtotal ►  $                    -    $                    -    $                        -   ◄ Funding Split Varies by Funding Source
►Intelligent Transportation Systems
  Intelligent Transportation Systems   Boston Region   Intelligent Transportation Systems      $                    -    $                    -    $                        -
Intelligent Transportation System subtotal ►  $                    -    $                    -    $                        -   ◄ 80% Federal + 20% Non-Federal
►Roadway Reconstruction
  Roadway Reconstruction 608835 Boston Region Medford MEDFORD- IMPROVEMENTS AT BROOKS ELEMENTARY SCHOOL (SRTS) 4 TAP  $            989,895  $            791,916  $                197,979
  Roadway Reconstruction 608743 Boston Region Salem SALEM- IMPROVEMENTS AT BATES ELEMENTARY SCHOOL (SRTS) 4 TAP  $            384,658  $            307,726  $                  76,932
  Roadway Reconstruction 608791 Boston Region Winchester WINCHESTER- IMPROVEMENTS AT VINSON-OWEN ELEMENTARY SCHOOL (SRTS) 4 TAP  $          1,671,716  $         1,337,373  $                334,343
  Roadway Reconstruction   Boston Region   Roadway Reconstruction      $                    -    $                    -    $                        -
Roadway Reconstruction subtotal ►  $       3,046,269  $       2,437,015  $              609,254 ◄ Funding Split Varies by Funding Source
►Section 2C / State Prioritized Expansion Projects
►Bicycles and Pedestrians
  Bicycles and Pedestrians   Boston Region   Bicycles and Pedestrians      $                    -    $                    -    $                        -
Bicycles and Pedestrians subtotal ►  $                    -    $                    -    $                        -   ◄ 80% Federal + 20% Non-Federal
►Capacity
  Capacity   Boston Region   Capacity      $                    -    $                    -    $                        -
Capacity subtotal ►  $                    -    $                    -    $                        -   ◄ Funding Split Varies by Funding Source
►Section 3 / Planning / Adjustments / Pass-throughs
►Planning / Adjustments / Pass-throughs
      Boston Region   ABP GANS Repayment  Multiple    $                    -    $                    -    $                        -
      Boston Region   Award adjustments, change orders, etc. Multiple    $                    -    $                    -    $                        -
      Boston Region   Metropolitan Planning Multiple    $                    -    $                    -    $                        -
      Boston Region   State Planning and Research Work Program II,  (SPR II), Research Multiple    $                    -    $                    -    $                        -
      Boston Region   Railroad Crossings Multiple    $                    -    $                    -    $                        -
      Boston Region   Recreational Trails Multiple    $                    -    $                    -    $                        -
Other Statewide Items subtotal ►  $                    -    $                    -    $                        -   ◄ Funding Split Varies by Funding Source
►Section 4 / Non-Federally Aided Projects
►Non-Federally Aided Projects
  Non Federal Aid   Boston Region   Non-Federal Aid      $                    -      $                        -
Non-Federal Aid subtotal►  $                    -      $                        -   ◄100% Non-Federal
2020 Summary TIP Section 1 - 3: ▼ TIP Section 4: ▼ Total of All Projects ▼
Total ►  $   131,954,551  $                    -    $       131,954,551 ◄ Total Spending in Region
Federal Funds ►  $   106,282,513    $       106,282,513 ◄ Total Federal Spending in Region
Non-Federal Funds ►  $     25,672,038  $                    -    $         25,672,038 ◄ Total Non-Federal Spending in Region
701 CMR 7.00 Use of Road Flaggers and Police Details on Public Works Projects / 701 CMR 7.00 (the Regulation) was promulgated and became law on October 3, 2008.  Under this Regulation, the CMR is applicable to any Public works Project that is performed within the limits of, or that impact traffic on, any Public Road.  The Municipal Limitation referenced in this Regulation is applicable only to projects where the Municipality is the Awarding Authority.  For all projects contained in the TIP, the Commonwealth is the Awarding Authority.  Therefore, all projects must be considered and implemented in accordance with 701 CMR 7.00, and the Road Flagger and Police Detail Guidelines. By placing a project on the TIP, the Municipality acknowledges that 701 CMR 7.00 is applicable to its project and design and construction will be fully compliant with this Regulation.   This information, and additional information relative to guidance and implementation of the Regulation can be found at the following link on the MassDOT Highway Division website:  http://www.massdot.state.ma.us/Highway/flaggers/main.aspx

The transit TIP tables will be included in the public review draft TIP. For now, a summary of MBTA and RTA programming for the FFYs 2020-24 TIP is included in Tables 3-3, 3-4, and 3-5.

Amendment /
Adjustment Type ▼
STIP                             Program ▼ MassDOT Project ID Metropolitan Planning Organization ▼ Municipality Name ▼ MassDOT                                                                                                              Project                                                                                               Description MassDOT  District Funding                       Source Total Programmed                Funds Federal                    Funds Non-Federal                        Funds Additional Information ▼                                   Present information as follows, if applicable: a) Planning / Design / or Construction; b) total project cost and funding sources used; c) advance construction status; d) MPO project score; e) name of entity receiving a transfer; f) name of entity paying the non-state non-federal match; g) earmark details; h) TAP project proponent; i) other information
►Section 1A / Regionally Prioritized Projects
►Regionally Prioritized Projects
      Boston Region          $                    -    $                        -    $                     -
Regionally Prioritized Projects subtotal ►  $                   -    $                       -    $                     -   ◄ Funding Split Varies by Funding Source
►Section 1A / Fiscal Constraint Analysis
Total Regional Federal Aid Funds Programmed ►  $                   -    $      104,552,877 ◄Total Budget  $    104,552,877 Target Funds Available
Section 1A instructions: MPO Template Name) Choose Regional Name from dropdown list to populate header and MPO column; Column C) Enter ID from ProjectInfo; Column E) Choose Municipality Name from dropdown list; Column H) Choose the Funding Source being used for the project - if multiple funding sources are being used enter multiple lines; Column I) Enter the total amount of funds being programmed in this fiscal year and for each funding source; Column J) Federal funds autocalculates. Please verify the amount and only change if needed for flex. Column K) Non-federal funds autocalculates. Please verify the split/match - if matching an FTA flex, coordinate with Rail & Transit Division before programming; Column L) Enter Additional Information as described - please do not use any other format. STBG programmed ►  $                   -    $                       -   STBG
HSIP programmed ►  $                   -    $                       -   HSIP
CMAQ programmed ►  $                   -    $                       -   CMAQ
TAP programmed ►  $                   -    $                       -   TAP

►Section 1B / Earmark or Discretionary Grant Funded Projects
►Other Federal Aid
  Roadway Reconstruction 606501 Boston Region Holbrook HOLBROOK- RECONSTRUCTION OF UNION STREET (ROUTE 139), FROM LINFIELD STREET TO CENTRE STREET/WATER STREET 5 HPP  $         1,527,250  $             1,221,800  $             305,450 Demo ID MA177
      Boston Region   Other Federal Aid   HPP  $                    -    $                        -    $                     -
Other Federal Aid subtotal ►  $      1,527,250  $          1,221,800  $           305,450 ◄ Funding Split Varies by Funding Source

►Section 2A / State Prioritized Reliability Projects
►Bridge Program / Inspections
  Bridge Program   Boston Region   Bridge Inspection      $                    -    $                        -    $                     -
Bridge Program / Inspections subtotal ►  $                   -    $                       -    $                     -   ◄ Funding Split Varies by Funding Source
►Bridge Program / Off-System
  Bridge Program 608637 Boston Region Maynard MAYNARD- BRIDGE REPLACEMENT, M-10-006, CARRYING FLORIDA ROAD OVER THE ASSABET RIVER 3 STBG-BR-OFF  $         1,646,400  $             1,317,120  $             329,280
  Bridge Program 608079 Boston Region Sharon SHARON- BRIDGE REPLACEMENT, S-09-003 (40N), MASKWONIKUT STREET OVER AMTRAK/MBTA 5 STBG-BR-OFF  $         5,755,240  $             4,604,192  $          1,151,048
  Bridge Program   Boston Region   Bridge Program / Off-System      $                      -  $                        -    $                     -
Bridge Program / Off-System subtotal ►  $      7,401,640  $          5,921,312  $        1,480,328 ◄ 80% Federal + 20% Non-Federal
►Bridge Program / On-System (NHS)
  Bridge Program 604173 Boston Region Boston BOSTON- BRIDGE REPLACEMENT, B-16-016, NORTH WASHINGTON STREET OVER THE BOSTON INNER HARBOR 6 NHPP-On  $       30,389,655  $           24,311,724  $          6,077,931 AC Year 5 of 6, Total Cost $176,318,433
  Bridge Program 605287 Boston Region Chelsea CHELSEA- ROUTE 1 VIADUCT REHABILITATION (SB/NB) ON C-09-007 & C-09-011 6 NHPP-On  $       29,992,990  $           23,994,392  $          5,998,598 AC Year 4 of 4, Total Cost $213,972,689
  Bridge Program 604952 Boston Region Multiple LYNN- SAUGUS- BRIDGE REPLACEMENT, L-18-016=S-05-008, ROUTE 107 OVER THE SAUGUS RIVER (AKA - BELDEN G. BLY BRIDGE) 4 NHPP-On  $       12,969,789  $           10,375,831  $          2,593,958 AC Year 3 of 5, Total Cost $84,253,135
  Bridge Program   Boston Region   Bridge Program / On-System (NHS)      $                      -  $                        -    $                     -
Bridge Program / On-System (NHS) subtotal ►  $    73,352,434  $        58,681,947  $      14,670,487 ◄ Funding Split Varies by Funding Source
►Bridge Program / On-System (Non-NHS)
  Bridge Program 608596 Boston Region Essex ESSEX- SUPERSTRUCTURE REPLACEMENT, E-11-001 (2TV), ROUTE 133\MAIN STREET OVER ESSEX RIVER 4 NHPP-Off  $         4,511,360  $             3,609,088  $             902,272
  Bridge Program   Boston Region   Bridge Program / On-System (Non-NHS)      $                      -  $                        -    $                     -
Bridge Program / On-System (Non-NHS) subtotal ►  $      4,511,360  $          3,609,088  $           902,272 ◄ 80% Federal + 20% Non-Federal
►Bridge Program / Systematic Maintenance
  Bridge Program 608610 Boston Region Newton NEWTON- STEEL SUPERSTRUCTURE CLEANING (FULL REMOVAL) AND PAINTING OF N-12-055 6 NHPP-On  $         2,304,000  $             1,843,200  $             460,800
  Bridge Program   Boston Region   Bridge Program / Systematic Maintenance      $                    -    $                        -    $                     -
Bridge Program / Systematic Maintenance subtotal ►  $      2,304,000  $          1,843,200  $           460,800 ◄ Funding Split Varies by Funding Source
►Interstate Pavement
  Interstate Pavement 608208 Boston Region Multiple QUINCY - MILTON - BOSTON - INTERSTATE MAINTENANCE AND RELATED WORK ON I-93 6 NHPP  $       27,371,469  $           24,634,322  $          2,737,147
  Interstate Pavement   Boston Region   Interstate Pavement      $                    -    $                        -    $                     -
Insterstate Pavement subtotal ►  $    27,371,469  $        24,634,322  $        2,737,147 ◄ 90% Federal + 10% Non-Federal
►Non-Interstate Pavement
  Non-Interstate Pavement 608467 Boston Region Marlborough MARLBOROUGH- RESURFACING AND RELATED WORK ON ROUTE 20 3 NHPP  $       14,358,240  $           11,486,592  $          2,871,648
  Non-Interstate Pavement 607477 Boston Region Multiple LYNNFIELD-PEABODY RESURFACING AND RELATED WORK ON ROUTE 1 4 NHPP  $         7,721,542  $             6,177,234  $          1,544,308
  Non-Interstate Pavement   Boston Region   Non-Interstate Pavement      $                    -    $                        -    $                     -
Non-Interstate Pavement subtotal ►  $    22,079,782  $        17,663,826  $        4,415,956 ◄ 80% Federal + 20% Non-Federal
► Roadway Improvements
  Roadway Improvements   Boston Region   Roadway Improvements      $                    -    $                        -    $                     -
Roadway Improvements subtotal ►  $                   -    $                       -    $                     -   ◄ 80% Federal + 20% Non-Federal
► Safety Improvements
  Safety Improvements   Boston Region   Safety Improvements      $                    -    $                        -    $                     -
Safety Improvements subtotal ►  $                   -    $                       -    $                     -   ◄ Funding Split Varies by Funding Source
►Section 2B / State Prioritized Modernization Projects
► ADA Retrofits
  ADA Retrofits   Boston Region   ADA Retrofits      $                    -    $                        -    $                     -
ADA Retrofits subtotal ►  $                   -    $                       -    $                     -   ◄ 80% Federal + 20% Non-Federal
►Intersection Improvements
  Intersection Improvements 608562 Boston Region Somerville  SOMERVILLE- SIGNAL AND INTERSECTION IMPROVEMENT ON I-93 AT MYSTIC AVENUE AND MCGRATH HIGHWAY (TOP 200 CRASH LOCATION) 4 HSIP  $         5,181,613  $             4,663,452  $             518,161
  Intersection Improvements 607342 Boston Region Milton  MILTON- INTERSECTION & SIGNAL IMPROVEMENTS @ ROUTE 28 (RANDOLPH AVENUE) & CHICKATAWBUT ROAD 6 HSIP  $         1,478,849  $             1,330,964  $             147,885
  Intersection Improvements 607748 Boston Region Acton  ACTON- INTERSECTION & SIGNAL IMPROVEMENTS ON SR 2 & SR 111 (MASSACHUSETTS AVENUE) AT PIPER ROAD & TAYLOR ROAD 3 HSIP  $         5,657,725  $             5,091,952  $             565,772
  Intersection Improvements 607761 Boston Region Swampscott  SWAMPSCOTT- INTERSECTION & SIGNAL IMPROVEMENTS AT SR 1A (PARADISE ROAD) AT SWAMPSCOTT MALL 4 HSIP  $         1,157,036  $             1,041,333  $             115,704
  Intersection Improvements   Boston Region   Intersection Improvements      $                    -    $                        -    $                     -
Intersection Improvements subtotal ►  $    13,475,223  $        12,127,701  $        1,347,522 ◄ Funding Split Varies by Funding Source
►Intelligent Transportation Systems
  Intelligent Transportation Systems   Boston Region   Intelligent Transportation Systems      $                    -    $                        -    $                     -
Intelligent Transportation System subtotal ►  $                   -    $                       -    $                     -   ◄ 80% Federal + 20% Non-Federal
►Roadway Reconstruction
  Roadway Reconstruction 608911 Boston Region Belmont BELMONT- IMPROVEMENTS AT WELLINGTON ELEMENTARY SCHOOL (SRTS) 4 TAP  $         1,614,288  $             1,291,430  $             322,858
  Roadway Reconstruction 607901 Boston Region Dedham DEDHAM- PEDESTRIAN IMPROVEMENTS ALONG ELM STREET & RUSTCRAFT ROAD CORRIDORS 6 CMAQ  $         3,019,061  $             2,415,249  $             603,812
  Roadway Reconstruction   Boston Region   Roadway Reconstruction      $                    -    $                        -    $                     -
Roadway Reconstruction subtotal ►  $      4,633,349  $          3,706,679  $           926,670 ◄ Funding Split Varies by Funding Source
►Section 2C / State Prioritized Expansion Projects
►Bicycles and Pedestrians
  Bicycles and Pedestrians 609066 Boston Region Multiple NEWTON- WESTON- MULTI-USE TRAIL CONNECTION, FROM RECREATION ROAD TO UPPER CHARLES RIVER GREENWAY INCLUDING RECONSTRUCTION OF PED BRIDGE N-12-078=W-29-062 6 CMAQ  $         2,767,958  $             2,214,367  $             553,592
  Bicycles and Pedestrians 607888 Boston Region Multiple BOSTON- BROOKLINE- MULTI-USE PATH CONSTRUCTION ON NEW FENWAY  6 CMAQ  $         3,345,372  $             2,676,298  $             669,074
  Bicycles and Pedestrians   Boston Region   Bicycles and Pedestrians      $                    -    $                        -    $                     -
Bicycles and Pedestrians subtotal ►  $      6,113,331  $          4,890,664  $        1,222,666 ◄ 80% Federal + 20% Non-Federal
►Capacity
  Capacity   Boston Region   Capacity      $                    -    $                        -    $                     -
Capacity subtotal ►  $                   -    $                       -    $                     -   ◄ Funding Split Varies by Funding Source
►Section 3 / Planning / Adjustments / Pass-throughs
►Planning / Adjustments / Pass-throughs
      Boston Region   ABP GANS Repayment  Multiple    $                    -    $                        -    $                     -
      Boston Region   Award adjustments, change orders, etc. Multiple    $                    -    $                        -    $                     -
      Boston Region   Metropolitan Planning Multiple    $                    -    $                        -    $                     -
      Boston Region   State Planning and Research Work Program II,  (SPR II), Research Multiple    $                    -    $                        -    $                     -
      Boston Region   Railroad Crossings Multiple    $                    -    $                        -    $                     -
      Boston Region   Recreational Trails Multiple    $                    -    $                        -    $                     -
Other Statewide Items subtotal ►  $                   -    $                       -    $                     -   ◄ Funding Split Varies by Funding Source
►Section 4 / Non-Federally Aided Projects
►Non-Federally Aided Projects
  Non Federal Aid   Boston Region   Non-Federal Aid      $                    -      $                     -
Non-Federal Aid subtotal►  $                   -      $                     -   ◄100% Non-Federal
2021 Summary TIP Section 1 - 3: ▼ TIP Section 4: ▼ Total of All Projects ▼
Total ►  $  162,769,837  $                       -    $    162,769,837 ◄ Total Spending in Region
Federal Funds ►  $  134,300,539    $    134,300,539 ◄ Total Federal Spending in Region
Non-Federal Funds ►  $    28,469,298  $                       -    $      28,469,298 ◄ Total Non-Federal Spending in Region
701 CMR 7.00 Use of Road Flaggers and Police Details on Public Works Projects / 701 CMR 7.00 (the Regulation) was promulgated and became law on October 3, 2008.  Under this Regulation, the CMR is applicable to any Public works Project that is performed within the limits of, or that impact traffic on, any Public Road.  The Municipal Limitation referenced in this Regulation is applicable only to projects where the Municipality is the Awarding Authority.  For all projects contained in the TIP, the Commonwealth is the Awarding Authority.  Therefore, all projects must be considered and implemented in accordance with 701 CMR 7.00, and the Road Flagger and Police Detail Guidelines. By placing a project on the TIP, the Municipality acknowledges that 701 CMR 7.00 is applicable to its project and design and construction will be fully compliant with this Regulation.   This information, and additional information relative to guidance and implementation of the Regulation can be found at the following link on the MassDOT Highway Division website:  http://www.massdot.state.ma.us/Highway/flaggers/main.aspx



The transit TIP tables will be included in the public review draft TIP. For now, a summary of MBTA and RTA programming for the FFYs 2020-24 TIP is included in Tables 3-3, 3-4, and 3-5.



2022 Boston Region Transportation Improvement Program

Amendment /
Adjustment Type ▼
STIP                             Program ▼ MassDOT Project ID Metropolitan Planning Organization ▼ Municipality Name ▼ MassDOT                                                                                                              Project                                                                                               Description MassDOT  District Funding                       Source Total Programmed                Funds Federal                    Funds Non-Federal                        Funds Additional Information ▼                                   Present information as follows, if applicable: a) Planning / Design / or Construction; b) total project cost and funding sources used; c) advance construction status; d) MPO project score; e) name of entity receiving a transfer; f) name of entity paying the non-state non-federal match; g) earmark details; h) TAP project proponent; i) other information
►Section 1A / Regionally Prioritized Projects
►Regionally Prioritized Projects
      Boston Region          $                       -    $                    -    $                       -
Regionally Prioritized Projects subtotal ►  $                       -    $                    -    $                       -   ◄ Funding Split Varies by Funding Source
►Section 1A / Fiscal Constraint Analysis
Total Regional Federal Aid Funds Programmed ►  $                       -    $   106,681,829 ◄Total Budget  $      106,681,829 Target Funds Available
Section 1A instructions: MPO Template Name) Choose Regional Name from dropdown list to populate header and MPO column; Column C) Enter ID from ProjectInfo; Column E) Choose Municipality Name from dropdown list; Column H) Choose the Funding Source being used for the project - if multiple funding sources are being used enter multiple lines; Column I) Enter the total amount of funds being programmed in this fiscal year and for each funding source; Column J) Federal funds autocalculates. Please verify the amount and only change if needed for flex. Column K) Non-federal funds autocalculates. Please verify the split/match - if matching an FTA flex, coordinate with Rail & Transit Division before programming; Column L) Enter Additional Information as described - please do not use any other format. STBG programmed ►  $                       -    $                    -   STBG
HSIP programmed ►  $                       -    $                    -   HSIP
CMAQ programmed ►  $                       -    $                    -   CMAQ
TAP programmed ►  $                       -    $                    -   TAP

►Section 1B / Earmark or Discretionary Grant Funded Projects
►Other Federal Aid
      Boston Region   Other Federal Aid   HPP  $                       -    $                    -    $                       -
Other Federal Aid subtotal ►  $                       -    $                    -    $                       -   ◄ Funding Split Varies by Funding Source

►Section 2A / State Prioritized Reliability Projects
►Bridge Program / Inspections
  Bridge Program   Boston Region   Bridge Inspection      $                       -    $                    -    $                       -
Bridge Program / Inspections subtotal ►  $                       -    $                    -    $                       -   ◄ Funding Split Varies by Funding Source
►Bridge Program / Off-System
  Bridge Program 608255 Boston Region Stow STOW- BRIDGE REPLACEMENT, S-29-011, BOX MILL ROAD OVER ELIZABETH BROOK 3 STBG-BR-OFF  $            3,612,223  $         2,889,779  $               722,445
  Bridge Program   Boston Region   Bridge Program / Off-System      $                         -  $                    -    $                       -
Bridge Program / Off-System subtotal ►  $          3,612,223  $       2,889,779  $             722,445 ◄ 80% Federal + 20% Non-Federal
►Bridge Program / On-System (NHS)
  Bridge Program 608614 Boston Region Boston BOSTON- BRIDGE SUBSTRUCTURE REPAIRS, B-16-179, AUSTIN STREET OVER I-93 RAMPS, MBTA COMMUTER RAIL AND ORANGE LINE  6 NHPP-On  $            5,000,000  $         4,000,000  $             1,000,000
  Bridge Program 607327 Boston Region Wilmington WILMINGTON- BRIDGE REPLACEMENT, W-38-002, ROUTE 38 (MAIN STREET) OVER THE B&M RAILROAD 4 NHPP-On  $           10,760,960  $         8,608,768  $             2,152,192
  Bridge Program 604173 Boston Region Boston BOSTON- BRIDGE REPLACEMENT, B-16-016, NORTH WASHINGTON STREET OVER THE BOSTON INNER HARBOR 6 NHPP-On  $           28,825,728  $        23,060,582  $             5,765,146 AC Year 6 of 6, Total Cost $176,318,433
  Bridge Program 604952 Boston Region Multiple LYNN- SAUGUS- BRIDGE REPLACEMENT, L-18-016=S-05-008, ROUTE 107 OVER THE SAUGUS RIVER (AKA - BELDEN G. BLY BRIDGE) 4 NHPP-On  $           22,307,071  $        17,845,656  $             4,461,414 AC Year 4 of 5, Total Cost $84,253,135
  Bridge Program   Boston Region   Bridge Program / On-System (NHS)      $                         -  $                    -    $                       -
Bridge Program / On-System (NHS) subtotal ►  $        66,893,759  $     53,515,007  $        13,378,752 ◄ Funding Split Varies by Funding Source
►Bridge Program / On-System (Non-NHS)
  Bridge Program 608929 Boston Region Wilmington WILMINGTON- BRIDGE REPLACEMENT, W-38-003, BUTTERS ROW OVER MBTA  4 NHPP-Off  $            5,183,360  $         4,146,688  $             1,036,672
  Bridge Program   Boston Region   Bridge Program / On-System (Non-NHS)      $                         -  $                    -    $                       -
Bridge Program / On-System (Non-NHS) subtotal ►  $          5,183,360  $       4,146,688  $          1,036,672 ◄ 80% Federal + 20% Non-Federal
►Bridge Program / Systematic Maintenance
  Bridge Program 608866 Boston Region Multiple NEWTON- WESTON- STEEL SUPERSTRUCTURE CLEANING (FULL REMOVAL) AND PAINTING OF 3 BRIDGES: N-12-051, W-29-011 & W-29-028 6 NHPP-On  $            2,349,900  $         1,879,920  $               469,980
  Bridge Program   Boston Region   Bridge Program / Systematic Maintenance      $                       -    $                    -    $                       -
Bridge Program / Systematic Maintenance subtotal ►  $          2,349,900  $       1,879,920  $             469,980 ◄ Funding Split Varies by Funding Source
►Interstate Pavement
  Interstate Pavement   Boston Region   Interstate Pavement      $                       -    $                    -    $                       -
Insterstate Pavement subtotal ►  $                       -    $                    -    $                       -   ◄ 90% Federal + 10% Non-Federal
►Non-Interstate Pavement
  Non-Interstate Pavement 608817 Boston Region Multiple SALEM-LYNN - RESURFACING AND RELATED WORK ON RTE 107 4 NHPP  $            2,278,125  $         1,822,500  $               455,625
  Non-Interstate Pavement 608818 Boston Region Danvers DANVERS - RESURFACING AND RELATED WORK ON ROUTE 114 4 NHPP  $            1,003,590  $            802,872  $               200,718
  Non-Interstate Pavement 608480 Boston Region Foxborough FOXBOROUGH - RESURFACING AND RELATED WORK ON US ROUTE 1 5 NHPP  $            7,072,920  $         5,658,336  $             1,414,584
  Non-Interstate Pavement   Boston Region   Non-Interstate Pavement      $                       -    $                    -    $                       -
Non-Interstate Pavement subtotal ►  $        10,354,635  $       8,283,708  $          2,070,927 ◄ 80% Federal + 20% Non-Federal
► Roadway Improvements
  Roadway Improvements 608599 Boston Region Multiple CANTON- SHARON- FOXBOROUGH- NORWOOD- WALPOLE- STORMWATER IMPROVEMENTS ALONG ROUTE 1, ROUTE 1A & INTERSTATE 95 5 STBG  $               526,235  $            420,988  $               105,247
  Roadway Improvements   Boston Region   Roadway Improvements      $                       -    $                    -    $                       -
Roadway Improvements subtotal ►  $                       -    $                    -    $                       -   ◄ 80% Federal + 20% Non-Federal
► Safety Improvements
  Safety Improvements 609060 Boston Region Multiple  LYNNFIELD- PEABODY- DANVERS-  GUIDE AND TRAFFIC SIGN REPLACEMENT ON I-95/128 (TASK 'A' INTERCHANGE) 4 HSIP  $               495,860  $            446,274  $                 49,586
  Safety Improvements 609090 Boston Region Multiple  BOSTON- MILTON- QUINCY- HIGHWAY LIGHTING SYSTEM REPLACEMENT ON I-93, FROM NEPONSET AVENUE TO THE BRAINTREE SPLIT 6 NHPP  $            9,568,000  $         7,654,400  $             1,913,600
  Safety Improvements   Boston Region   Safety Improvements      $                       -    $                    -    $                       -
Safety Improvements subtotal ►  $        10,063,860  $       8,100,674  $          1,963,186 ◄ Funding Split Varies by Funding Source
►Section 2B / State Prioritized Modernization Projects
► ADA Retrofits
  ADA Retrofits   Boston Region   ADA Retrofits      $                       -    $                    -    $                       -
ADA Retrofits subtotal ►  $                       -    $                    -    $                       -   ◄ 80% Federal + 20% Non-Federal
►Intersection Improvements
  Intersection Improvements 608567 Boston Region Peabody  PEABODY- IMPROVEMENTS AT ROUTE 114 AT SYLVAN STREET, CROSS STREET, NORTHSHORE MALL, LORIS ROAD, ROUTE 128 INTERCHANGE AND ESQUIRE DRIVE 4 HSIP  $            1,815,480  $         1,633,932  $               181,548
  Intersection Improvements 608569 Boston Region Quincy  QUINCY- INTERSECTION IMPROVEMENTS AT ROUTE 3A (SOUTHERN ARTERY) AND BROAD STREET 6 HSIP  $            3,132,000  $         2,818,800  $               313,200
  Intersection Improvements   Boston Region   Intersection Improvements      $                       -    $                    -    $                       -
Intersection Improvements subtotal ►  $          4,947,480  $       4,452,732  $             494,748 ◄ Funding Split Varies by Funding Source
►Intelligent Transportation Systems
  Intelligent Transportation Systems   Boston Region   Intelligent Transportation Systems      $                       -    $                    -    $                       -
Intelligent Transportation System subtotal ►  $                       -    $                    -    $                       -   ◄ 80% Federal + 20% Non-Federal
►Roadway Reconstruction
  Roadway Reconstruction 607977 Boston Region Multiple  HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE 3 NFP  $           27,500,000  $        22,000,000  $             5,500,000 a) Construction; Total Federal Participating Cost (TFPC) = $189,451,000; AC Yr 1 of 5
  Roadway Reconstruction 607977 Boston Region Multiple  HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE 3 NHPP  $           12,233,939  $         9,787,151  $             2,446,788 a) Construction; Total Federal Participating Cost (TFPC) = $189,451,000; AC Yr 1 of 5
  Roadway Reconstruction   Boston Region   Roadway Reconstruction      $                       -    $                    -    $                       -
Roadway Reconstruction subtotal ►  $        39,733,939  $     31,787,151  $          7,946,788 ◄ Funding Split Varies by Funding Source
►Section 2C / State Prioritized Expansion Projects
►Bicycles and Pedestrians
  Bicycles and Pedestrians   Boston Region   Bicycles and Pedestrians      $                       -    $                    -    $                       -
Bicycles and Pedestrians subtotal ►  $                       -    $                    -    $                       -   ◄ 80% Federal + 20% Non-Federal
►Capacity
  Capacity   Boston Region   Capacity      $                       -    $                    -    $                       -
Capacity subtotal ►  $                       -    $                    -    $                       -   ◄ Funding Split Varies by Funding Source
►Section 3 / Planning / Adjustments / Pass-throughs
►Planning / Adjustments / Pass-throughs
      Boston Region   ABP GANS Repayment  Multiple    $                       -    $                    -    $                       -
      Boston Region   Award adjustments, change orders, etc. Multiple    $                       -    $                    -    $                       -
      Boston Region   Metropolitan Planning Multiple    $                       -    $                    -    $                       -
      Boston Region   State Planning and Research Work Program II,  (SPR II), Research Multiple    $                       -    $                    -    $                       -
      Boston Region   Railroad Crossings Multiple    $                       -    $                    -    $                       -
      Boston Region   Recreational Trails Multiple    $                       -    $                    -    $                       -
Other Statewide Items subtotal ►  $                       -    $                    -    $                       -   ◄ Funding Split Varies by Funding Source
►Section 4 / Non-Federally Aided Projects
►Non-Federally Aided Projects
  Non Federal Aid 607977 Boston Region Multiple  HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE 3 NFA  $                       -      $                       -
  Non-Federally Aided Projects   Boston Region   Non-Federal Aid      $                       -      $                       -
Non-Federal Aid subtotal►  $                       -      $                       -   ◄100% Non-Federal
2022 Summary TIP Section 1 - 3: ▼ TIP Section 4: ▼ Total of All Projects ▼
Total ►  $      143,139,156  $                    -    $      143,139,156 ◄ Total Spending in Region
Federal Funds ►  $      115,055,659    $      115,055,659 ◄ Total Federal Spending in Region
Non-Federal Funds ►  $        28,083,497  $                    -    $        28,083,497 ◄ Total Non-Federal Spending in Region
701 CMR 7.00 Use of Road Flaggers and Police Details on Public Works Projects / 701 CMR 7.00 (the Regulation) was promulgated and became law on October 3, 2008.  Under this Regulation, the CMR is applicable to any Public works Project that is performed within the limits of, or that impact traffic on, any Public Road.  The Municipal Limitation referenced in this Regulation is applicable only to projects where the Municipality is the Awarding Authority.  For all projects contained in the TIP, the Commonwealth is the Awarding Authority.  Therefore, all projects must be considered and implemented in accordance with 701 CMR 7.00, and the Road Flagger and Police Detail Guidelines. By placing a project on the TIP, the Municipality acknowledges that 701 CMR 7.00 is applicable to its project and design and construction will be fully compliant with this Regulation.   This information, and additional information relative to guidance and implementation of the Regulation can be found at the following link on the MassDOT Highway Division website:  http://www.massdot.state.ma.us/Highway/flaggers/main.aspx

The transit TIP tables will be included in the public review draft TIP. For now, a summary of MBTA and RTA programming for the FFYs 2020-24 TIP is included in Tables 3-3, 3-4, and 3-5.

2023 Boston Region Transportation Improvement Program

Amendment /
Adjustment Type ▼
STIP                             Program ▼ MassDOT Project ID Metropolitan Planning Organization ▼ Municipality Name ▼ MassDOT                                                                                                              Project                                                                                               Description MassDOT  District Funding                       Source Total Programmed                Funds Federal                    Funds Non-Federal                        Funds Additional Information ▼                                   Present information as follows, if applicable: a) Planning / Design / or Construction; b) total project cost and funding sources used; c) advance construction status; d) MPO project score; e) name of entity receiving a transfer; f) name of entity paying the non-state non-federal match; g) earmark details; h) TAP project proponent; i) other information
►Section 1A / Regionally Prioritized Projects
►Regionally Prioritized Projects
      Boston Region          $                      -    $                    -    $                    -
Regionally Prioritized Projects subtotal ►  $                      -    $                    -    $                    -   ◄ Funding Split Varies by Funding Source
►Section 1A / Fiscal Constraint Analysis
Total Regional Federal Aid Funds Programmed ►  $                      -    $   109,011,849 ◄Total Budget  $      109,011,849 Target Funds Available
Section 1A instructions: MPO Template Name) Choose Regional Name from dropdown list to populate header and MPO column; Column C) Enter ID from ProjectInfo; Column E) Choose Municipality Name from dropdown list; Column H) Choose the Funding Source being used for the project - if multiple funding sources are being used enter multiple lines; Column I) Enter the total amount of funds being programmed in this fiscal year and for each funding source; Column J) Federal funds autocalculates. Please verify the amount and only change if needed for flex. Column K) Non-federal funds autocalculates. Please verify the split/match - if matching an FTA flex, coordinate with Rail & Transit Division before programming; Column L) Enter Additional Information as described - please do not use any other format. STBG programmed ►  $                      -    $                    -   STBG
HSIP programmed ►  $                      -    $                    -   HSIP
CMAQ programmed ►  $                      -    $                    -   CMAQ
TAP programmed ►  $                      -    $                    -   TAP

►Section 1B / Earmark or Discretionary Grant Funded Projects
►Other Federal Aid
      Boston Region   Other Federal Aid   HPP  $                      -    $                    -    $                    -
Other Federal Aid subtotal ►  $                      -    $                    -    $                    -   ◄ Funding Split Varies by Funding Source

►Section 2A / State Prioritized Reliability Projects
►Bridge Program / Inspections
  Bridge Program   Boston Region   Bridge Inspection      $                      -    $                    -    $                    -
Bridge Program / Inspections subtotal ►  $                      -    $                    -    $                    -   ◄ Funding Split Varies by Funding Source
►Bridge Program / Off-System
  Bridge Program   Boston Region   Bridge Program / Off-System      $                        -  $                    -    $                    -
Bridge Program / Off-System subtotal ►  $                      -    $                    -    $                    -   ◄ 80% Federal + 20% Non-Federal
►Bridge Program / On-System (NHS)
  Bridge Program 606728 Boston Region Boston BOSTON- BRIDGE REPLACEMENT B-16-365, BOWKER OVERPASS OVER STORROW DRIVE (EB) 6 NHPP-On  $          24,009,700  $        19,207,760  $         4,801,940
  Bridge Program 606902 Boston Region Boston BOSTON- BRIDGE RECONSTRUCTION/REHAB, B-16-181, WEST ROXBURY PARKWAY OVER MBTA 6 NHPP-On  $            6,900,000  $         5,520,000  $         1,380,000
  Bridge Program 604952 Boston Region Multiple LYNN- SAUGUS- BRIDGE REPLACEMENT, L-18-016=S-05-008, ROUTE 107 OVER THE SAUGUS RIVER (AKA - BELDEN G. BLY BRIDGE) 4 NHPP-On  $          18,409,727  $        14,727,781  $         3,681,945 AC Year 5 of 5, Total Cost $84,253,135
  Bridge Program   Boston Region   Bridge Program / On-System (NHS)      $                        -  $                    -    $                    -
Bridge Program / On-System (NHS) subtotal ►  $       49,319,427  $     39,455,541  $       9,863,885 ◄ Funding Split Varies by Funding Source
►Bridge Program / On-System (Non-NHS)
  Bridge Program 608197 Boston Region Boston BOSTON- SUPERSTRUCTURE REPLACEMENT, B-16-107, CANTERBURY STREET OVER AMTRAK/MBTA 6 NHPP-Off  $            4,678,280  $         3,742,624  $            935,656
  Bridge Program   Boston Region   Bridge Program / On-System (Non-NHS)      $                        -  $                    -    $                    -
Bridge Program / On-System (Non-NHS) subtotal ►  $         4,678,280  $       3,742,624  $          935,656 ◄ 80% Federal + 20% Non-Federal
►Bridge Program / Systematic Maintenance
  Bridge Program 608609 Boston Region Multiple NEWTON- WESTWOOD- STEEL SUPERSTRUCTURE CLEANING (FULL REMOVAL) AND PAINTING OF 2 BRIDGES: N-12-056 & W-31-006 6 NHPP-Off  $            2,142,857  $         1,714,285  $            428,571
  Bridge Program   Boston Region   Bridge Program / Systematic Maintenance      $                      -    $                    -    $                    -
Bridge Program / Systematic Maintenance subtotal ►  $         2,142,857  $       1,714,285  $          428,571 ◄ Funding Split Varies by Funding Source
►Interstate Pavement
  Interstate Pavement   Boston Region   Interstate Pavement      $                      -    $                    -    $                    -
Insterstate Pavement subtotal ►  $                      -    $                    -    $                    -   ◄ 90% Federal + 10% Non-Federal
►Non-Interstate Pavement
  Non-Interstate Pavement 608484 Boston Region Multiple CANTON-MILTON - RESURFACING AND RELATED WORK ON ROUTE 138 6 NHPP  $          18,639,846  $        14,911,877  $         3,727,969
  Non-Interstate Pavement 608498 Boston Region Multiple HINGHAM-WEYMOUTH-BRAINTREE - RESURFACING AND RELATED WORK ON ROUTE 53 6 NHPP  $            8,458,240  $         6,766,592  $         1,691,648
  Non-Interstate Pavement   Boston Region   Non-Interstate Pavement      $                      -    $                    -    $                    -
Non-Interstate Pavement subtotal ►  $       27,098,086  $     21,678,469  $       5,419,617 ◄ 80% Federal + 20% Non-Federal
► Roadway Improvements
  Roadway Improvements   Boston Region   Roadway Improvements      $                      -    $                    -    $                    -
Roadway Improvements subtotal ►  $                      -    $                    -    $                    -   ◄ 80% Federal + 20% Non-Federal
► Safety Improvements
  Safety Improvements 609053 Boston Region Multiple  CANTON- DEDHAM- NORWOOD- HIGHWAY LIGHTING IMPROVEMENTS AT I-93 & I-95/128 6 NHPP  $            5,432,056  $         4,345,645  $         1,086,411
  Safety Improvements   Boston Region   Safety Improvements      $                      -    $                    -    $                    -
Safety Improvements subtotal ►  $         5,432,056  $       4,345,645  $       1,086,411 ◄ Funding Split Varies by Funding Source
►Section 2B / State Prioritized Modernization Projects
► ADA Retrofits
  ADA Retrofits   Boston Region   ADA Retrofits      $                      -    $                    -    $                    -
ADA Retrofits subtotal ►  $                      -    $                    -    $                    -   ◄ 80% Federal + 20% Non-Federal
►Intersection Improvements
  Intersection Improvements 608052 Boston Region Norwood  NORWOOD- INTERSECTION & SIGNAL IMPROVEMENTS AT US 1 (PROVIDENCE HIGHWAY) & MORSE STREET 5 HSIP  $            1,668,001  $         1,501,201  $            166,800
  Intersection Improvements 608564 Boston Region Watertown WATERTOWN- INTERSECTION IMPROVEMENTS AT ROUTE 16 AND GALEN STREET 6 HSIP  $            2,688,000  $         2,419,200  $            268,800
  Intersection Improvements 608566 Boston Region Marlborough MARLBOROUGH- IMPROVEMENTS AT ROUTE 20 (EAST MAIN STREET) AT CURTIS AVENUE 3 HSIP  $            2,688,000  $         2,419,200  $            268,800
  Intersection Improvements   Boston Region   Intersection Improvements      $                      -    $                    -    $                    -
Intersection Improvements subtotal ►  $         7,044,001  $       6,339,601  $          704,400 ◄ Funding Split Varies by Funding Source
►Intelligent Transportation Systems
  Intelligent Transportation Systems   Boston Region   Intelligent Transportation Systems      $                      -    $                    -    $                    -
Intelligent Transportation System subtotal ►  $                      -    $                    -    $                    -   ◄ 80% Federal + 20% Non-Federal
►Roadway Reconstruction
  Roadway Reconstruction 607977 Boston Region Multiple  HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE 3 NFP  $          30,000,000  $        24,000,000  $         6,000,000 a) Construction; Total Federal Participating Cost (TFPC) = $189,451,000; AC Yr 2 of 5
  Roadway Reconstruction   Boston Region   Roadway Reconstruction      $                      -    $                    -    $                    -
Roadway Reconstruction subtotal ►  $       30,000,000  $     24,000,000  $       6,000,000 ◄ Funding Split Varies by Funding Source
►Section 2C / State Prioritized Expansion Projects
►Bicycles and Pedestrians
  Bicycles and Pedestrians 608943 Boston Region Boston BOSTON- NEPONSET RIVER GREENWAY (PHASE 3) 6 CMAQ  $            6,067,404  $         4,853,923  $         1,213,481
  Bicycles and Pedestrians   Boston Region   Bicycles and Pedestrians      $                      -    $                    -    $                    -
Bicycles and Pedestrians subtotal ►  $         6,067,404  $       4,853,923  $       1,213,481 ◄ 80% Federal + 20% Non-Federal
►Capacity
  Capacity   Boston Region   Capacity      $                      -    $                    -    $                    -
Capacity subtotal ►  $                      -    $                    -    $                    -   ◄ Funding Split Varies by Funding Source
►Section 3 / Planning / Adjustments / Pass-throughs
►Planning / Adjustments / Pass-throughs
      Boston Region   ABP GANS Repayment  Multiple    $                      -    $                    -    $                    -
      Boston Region   Award adjustments, change orders, etc. Multiple    $                      -    $                    -    $                    -
      Boston Region   Metropolitan Planning Multiple    $                      -    $                    -    $                    -
      Boston Region   State Planning and Research Work Program I, (SPR I), Planning Multiple    $                      -    $                    -    $                    -
      Boston Region   Railroad Crossings Multiple    $                      -    $                    -    $                    -
      Boston Region   Recreational Trails Multiple    $                      -    $                    -    $                    -
Other Statewide Items subtotal ►  $                      -    $                    -    $                    -   ◄ Funding Split Varies by Funding Source
►Section 4 / Non-Federally Aided Projects
►Non-Federally Aided Projects
  Non Federal Aid 607977 Boston Region Multiple  HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE 3 NFA  $                      -      $                    -
  Non-Federally Aided Projects   Boston Region   Non-Federal Aid      $                      -      $                    -
Non-Federal Aid subtotal►  $                      -      $                    -   ◄100% Non-Federal
2023 Summary TIP Section 1 - 3: ▼ TIP Section 4: ▼ Total of All Projects ▼
Total ►  $     131,782,111  $                    -    $   131,782,111 ◄ Total Spending in Region
Federal Funds ►  $     106,130,089    $   106,130,089 ◄ Total Federal Spending in Region
Non-Federal Funds ►  $       25,652,022  $                    -    $     25,652,022 ◄ Total Non-Federal Spending in Region
701 CMR 7.00 Use of Road Flaggers and Police Details on Public Works Projects / 701 CMR 7.00 (the Regulation) was promulgated and became law on October 3, 2008.  Under this Regulation, the CMR is applicable to any Public works Project that is performed within the limits of, or that impact traffic on, any Public Road.  The Municipal Limitation referenced in this Regulation is applicable only to projects where the Municipality is the Awarding Authority.  For all projects contained in the TIP, the Commonwealth is the Awarding Authority.  Therefore, all projects must be considered and implemented in accordance with 701 CMR 7.00, and the Road Flagger and Police Detail Guidelines. By placing a project on the TIP, the Municipality acknowledges that 701 CMR 7.00 is applicable to its project and design and construction will be fully compliant with this Regulation.   This information, and additional information relative to guidance and implementation of the Regulation can be found at the following link on the MassDOT Highway Division website:  http://www.massdot.state.ma.us/Highway/flaggers/main.aspx

The transit TIP tables will be included in the public review draft TIP. For now, a summary of MBTA and RTA programming for the FFYs 2020-24 TIP is included in Tables 3-3, 3-4, and 3-5.

2024 Boston Region Transportation Improvement Program

Amendment /
Adjustment Type ▼
STIP                             Program ▼ MassDOT Project ID Metropolitan Planning Organization ▼ Municipality Name ▼ MassDOT                                                                                                              Project                                                                                               Description MassDOT  District Funding                       Source Total Programmed                Funds Federal                    Funds Non-Federal                        Funds Additional Information ▼                                   Present information as follows, if applicable: a) Planning / Design / or Construction; b) total project cost and funding sources used; c) advance construction status; d) MPO project score; e) name of entity receiving a transfer; f) name of entity paying the non-state non-federal match; g) earmark details; h) TAP project proponent; i) other information
►Section 1A / Regionally Prioritized Projects
►Regionally Prioritized Projects
      Boston Region          $                        -    $                        -    $                         -
Regionally Prioritized Projects subtotal ►  $                       -    $                       -    $                        -   ◄ Funding Split Varies by Funding Source
►Section 1A / Fiscal Constraint Analysis
Total Regional Federal Aid Funds Programmed ►  $                       -    $      110,440,638 ◄Total Budget  $        110,440,638 Target Funds Available
Section 1A instructions: MPO Template Name) Choose Regional Name from dropdown list to populate header and MPO column; Column C) Enter ID from ProjectInfo; Column E) Choose Municipality Name from dropdown list; Column H) Choose the Funding Source being used for the project - if multiple funding sources are being used enter multiple lines; Column I) Enter the total amount of funds being programmed in this fiscal year and for each funding source; Column J) Federal funds autocalculates. Please verify the amount and only change if needed for flex. Column K) Non-federal funds autocalculates. Please verify the split/match - if matching an FTA flex, coordinate with Rail & Transit Division before programming; Column L) Enter Additional Information as described - please do not use any other format. STBG programmed ►  $                       -    $                       -   STBG
HSIP programmed ►  $                       -    $                       -   HSIP
CMAQ programmed ►  $                       -    $                       -   CMAQ
TAP programmed ►  $                       -    $                       -   TAP

►Section 1B / Earmark or Discretionary Grant Funded Projects
►Other Federal Aid
      Boston Region   Other Federal Aid   HPP  $                        -    $                        -    $                         -
Other Federal Aid subtotal ►  $                       -    $                       -    $                        -   ◄ Funding Split Varies by Funding Source

►Section 2A / State Prioritized Reliability Projects
►Bridge Program / Inspections
  Bridge Program   Boston Region   Bridge Inspection      $                        -    $                        -    $                         -
Bridge Program / Inspections subtotal ►  $                       -    $                       -    $                        -   ◄ Funding Split Varies by Funding Source
►Bridge Program / Off-System
  Bridge Program TBD Boston Region Canton CANTON-BRIDGE REPLACEMENT, C-02-042, REVERE COURT OVER EAST BRANCH NEPONSET RIVER 6 STBG-BR-OFF  $             2,721,360  $             2,177,088  $                 544,272
  Bridge Program TBD Boston Region Hamilton HAMILTON-BRIDGE REPLACEMENT, WINTHROP STREET OVER IPSWICH RIVER 4 STBG-BR-OFF  $             3,698,544  $             2,958,835  $                 739,709
  Bridge Program   Boston Region   Bridge Program / Off-System      $                          -  $                        -    $                         -
Bridge Program / Off-System subtotal ►  $          6,419,904  $          5,135,923  $           1,283,981 ◄ 80% Federal + 20% Non-Federal
►Bridge Program / On-System (NHS)
  Bridge Program 608703 Boston Region Wilmington  WILMINGTON- BRIDGE REPLACEMENT, W-38-029 (2KV), ST 129 LOWELL STREET OVER I 93 4 NHPP-On  $           17,137,875  $           13,710,300  $              3,427,575
  Bridge Program   Boston Region   Bridge Program / On-System (NHS)      $                          -  $                        -    $                         -
Bridge Program / On-System (NHS) subtotal ►  $        17,137,875  $        13,710,300  $           3,427,575 ◄ Funding Split Varies by Funding Source
►Bridge Program / On-System (Non-NHS)
  Bridge Program 608522 Boston Region Middleton MIDDLETON- BRIDGE REPLACEMENT, M-20-003, ROUTE 62 (MAPLE STREET) OVER IPSWICH RIVER 4 NHPP-Off  $             4,073,920  $             3,259,136  $                 814,784
  Bridge Program   Boston Region   Bridge Program / On-System (Non-NHS)      $                          -  $                        -    $                         -
Bridge Program / On-System (Non-NHS) subtotal ►  $          4,073,920  $          3,259,136  $              814,784 ◄ 80% Federal + 20% Non-Federal
►Bridge Program / Systematic Maintenance
  Bridge Program   Boston Region   Bridge Program / Systematic Maintenance      $                          -  $                        -    $                         -
Bridge Program / Systematic Maintenance subtotal ►  $                       -    $                       -    $                        -   ◄ Funding Split Varies by Funding Source
►Interstate Pavement
  Interstate Pavement   Boston Region   Interstate Pavement      $                        -    $                        -    $                         -
Insterstate Pavement subtotal ►  $                       -    $                       -    $                        -   ◄ 90% Federal + 10% Non-Federal
►Non-Interstate Pavement
  Non-Interstate Pavement 609402 Boston Region Multiple FRAMINGHAM - NATICK - RESURFACING AND RELATED WORK ON ROUTE 9 3 NHPP  $           25,711,400  $           20,569,120  $              5,142,280
  Non-Interstate Pavement 608495 Boston Region Multiple CONCORD-LINCOLN-LEXINGTON RESURFACING AND RELATED WORK ON ROUTE 2A 4 NHPP  $             3,262,500  $             2,610,000  $                 652,500
  Non-Interstate Pavement 609399 Boston Region Randolph RANDOLPH - RESURFACING AND RELATED WORK ON ROUTE 28 6 NHPP  $             7,407,946  $             5,926,357  $              1,481,589
  Non-Interstate Pavement 609396 Boston Region Multiple RANDOLPH - MILTON - RESURFACING AND RELATED WORK ON ROUTE 28 6 NHPP  $             7,407,946  $             5,926,357  $              1,481,589
  Non-Interstate Pavement   Boston Region   Non-Interstate Pavement      $                        -    $                        -    $                         -
Non-Interstate Pavement subtotal ►  $        43,789,792  $        35,031,834  $           8,757,958 ◄ 80% Federal + 20% Non-Federal
► Roadway Improvements
  Roadway Improvements   Boston Region   Roadway Improvements      $                        -    $                        -    $                         -
Roadway Improvements subtotal ►  $                       -    $                       -    $                        -   ◄ 80% Federal + 20% Non-Federal
► Safety Improvements
  Safety Improvements 609058 Boston Region Multiple PEABODY TO GLOUCESTER- GUIDE AND TRAFFIC SIGN REPLACEMENT ON ROUTE 128 4 HSIP  $             1,903,664  $             1,713,298  $                 190,366
  Safety Improvements   Boston Region   Safety Improvements      $                        -    $                        -    $                         -
Safety Improvements subtotal ►  $                       -    $                       -    $                        -   ◄ Funding Split Varies by Funding Source
►Section 2B / State Prioritized Modernization Projects
► ADA Retrofits
  ADA Retrofits   Boston Region   ADA Retrofits      $                        -    $                        -    $                         -
ADA Retrofits subtotal ►  $                       -    $                       -    $                        -   ◄ 80% Federal + 20% Non-Federal
►Intersection Improvements
  Intersection Improvements 609254 Boston Region Lynn  LYNN- INTERSECTION IMPROVEMENTS AT TWO INTERSECTIONS ON BROADWAY 4 HSIP  $             6,809,548  $             6,128,593  $                 680,955
  Intersection Improvements 607759 Boston Region Boston  BOSTON- INTERSECTION & SIGNAL IMPROVEMENTS AT THE VFW PARKWAY & SPRING STREET 6 HSIP  $             1,075,772  $                968,194  $                 107,577
  Intersection Improvements   Boston Region   Intersection Improvements      $                        -    $                        -    $                         -
Intersection Improvements subtotal ►  $          7,885,320  $          7,096,788  $              788,532 ◄ Funding Split Varies by Funding Source
►Intelligent Transportation Systems
  Intelligent Transportation Systems   Boston Region   Intelligent Transportation Systems      $                        -    $                        -    $                         -
Intelligent Transportation System subtotal ►  $                       -    $                       -    $                        -   ◄ 80% Federal + 20% Non-Federal
►Roadway Reconstruction
  Roadway Reconstruction 607977 Boston Region Multiple  HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE 3 NHPP  $           50,000,000  $           40,000,000  $            10,000,000 a) Construction; Total Federal Participating Cost (TFPC) = $189,451,000; AC Yr 3 of 5
  Roadway Reconstruction   Boston Region   Roadway Reconstruction      $                        -    $                        -    $                         -
Roadway Reconstruction subtotal ►  $        50,000,000  $        40,000,000  $         10,000,000 ◄ Funding Split Varies by Funding Source
►Section 2C / State Prioritized Expansion Projects
►Bicycles and Pedestrians
  Bicycles and Pedestrians 608948 Boston Region Multiple BELLINGHAM- FRANKLIN- SOUTHERN NEW ENGLAND TRUNK TRAIL (SNETT) CONSTRUCTION 3 CMAQ  $             3,201,600  $             2,561,280  $                 640,320
  Bicycles and Pedestrians 608995 Boston Region Multiple SUDBURY- STOW- HUDSON- MASS CENTRAL RAIL TRAIL WAYSIDE 3 CMAQ  $             6,670,000  $             5,336,000  $              1,334,000
  Bicycles and Pedestrians 607329 Boston Region Multiple WAKEFIELD- LYNNFIELD- RAIL TRAIL EXTENSION, FROM THE GALVIN MIDDLE SCHOOL TO LYNNFIELD/PEABODY T.L. 4 CMAQ  $           11,080,749  $             8,864,599  $              2,216,150
Bicycles and Pedestrians subtotal ►  $        20,952,349  $        16,761,879  $           4,190,470 ◄ 80% Federal + 20% Non-Federal
►Capacity
  Capacity   Boston Region   Capacity      $                        -    $                        -    $                         -
Capacity subtotal ►  $                       -    $                       -    $                        -   ◄ Funding Split Varies by Funding Source
►Section 3 / Planning / Adjustments / Pass-throughs
►Planning / Adjustments / Pass-throughs
      Boston Region   ABP GANS Repayment  Multiple    $                        -    $                        -    $                         -
      Boston Region   Award adjustments, change orders, etc. Multiple    $                        -    $                        -    $                         -
      Boston Region   Metropolitan Planning Multiple    $                        -    $                        -    $                         -
      Boston Region   State Planning and Research Work Program I, (SPR I), Planning Multiple    $                        -    $                        -    $                         -
      Boston Region   Railroad Crossings Multiple    $                        -    $                        -    $                         -
      Boston Region   Recreational Trails Multiple    $                        -    $                        -    $                         -
Other Statewide Items subtotal ►  $                       -    $                       -    $                        -   ◄ Funding Split Varies by Funding Source
►Section 4 / Non-Federally Aided Projects
►Non-Federally Aided Projects
  Non Federal Aid 607977 Boston Region Multiple  HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE 3 NFA  $                        -      $                         -
  Non-Federally Aided Projects   Boston Region   Non-Federal Aid      $                        -      $                         -
Non-Federal Aid subtotal►  $                       -      $                        -   ◄100% Non-Federal
2019 Summary TIP Section 1 - 3: ▼ TIP Section 4: ▼ Total of All Projects ▼
Total ►  $      150,259,159  $                       -    $       150,259,159 ◄ Total Spending in Region
Federal Funds ►  $      120,995,859    $       120,995,859 ◄ Total Federal Spending in Region
Non-Federal Funds ►  $        29,263,300  $                       -    $         29,263,300 ◄ Total Non-Federal Spending in Region
701 CMR 7.00 Use of Road Flaggers and Police Details on Public Works Projects / 701 CMR 7.00 (the Regulation) was promulgated and became law on October 3, 2008.  Under this Regulation, the CMR is applicable to any Public works Project that is performed within the limits of, or that impact traffic on, any Public Road.  The Municipal Limitation referenced in this Regulation is applicable only to projects where the Municipality is the Awarding Authority.  For all projects contained in the TIP, the Commonwealth is the Awarding Authority.  Therefore, all projects must be considered and implemented in accordance with 701 CMR 7.00, and the Road Flagger and Police Detail Guidelines. By placing a project on the TIP, the Municipality acknowledges that 701 CMR 7.00 is applicable to its project and design and construction will be fully compliant with this Regulation.   This information, and additional information relative to guidance and implementation of the Regulation can be found at the following link on the MassDOT Highway Division website:  http://www.massdot.state.ma.us/Highway/flaggers/main.aspx



The transit TIP tables will be included in the public review draft TIP. For now, a summary of MBTA and RTA programming for the FFYs 2020-24 TIP is included in Tables 3-3, 3-4, and 3-5.

Table 3-3
Federal Fiscal Years 2020-24 Transportation Improvement Program
MBTA Federal Capital Program
FFY 2019 and FFY 2020-2024 TIP - Project List and Descriptions (80% Federal Share)

Source

TIP Program

Project Name

FFY19 (Fed $)

FFY 20-24 (Fed $)

Total (Fed $)

Project Description

5307 - Revenue Vehicles

5307

Revenue Vehicles

Delivery of 460 40 ft Buses - FY 2021 to FY 2025



$178,351,548

$178,351,548

Procurement of 40-foot electric and hybrid buses for replacement of diesel bus fleet.

5307

Revenue Vehicles

DMA Replacement



$82,690,000

$82,690,000

Procurement of 60-foot Dual Mode Articulated (DMA) buses to replace the existing fleet of 32 Silver Line Bus Rapid Transit buses and to provide for ridership expansion projected as a result of Silver Line service extension to Chelsea.

5307

Revenue Vehicles

Green Line Type 10 Light Rail Fleet Replacement



$165,599,999

$165,599,999

Replacement of Light Rail Vehicles to replace the existing Green Line Type 7 and 8 Fleets.

5307

Revenue Vehicles

Locomotive Overhaul

$43,907,679



$43,907,679

Overhaul of commuter rail locomotives to improve fleet availability and service reliability systemwide.

5307

Revenue Vehicles

LoNo Bus Procurement Project

$2,187,991



$2,187,991

Supplemental funding for the procurement of Battery Electric 60 ft Articulated Buses for operation on the Silver Line.

5307

Revenue Vehicles

MBTA Catamaran Overhauls

$7,782,681



$7,782,681

Replacement of major systems and refurbishment of seating and other customer facing components on two catamarans (Lightning and Flying Cloud).

5307

Revenue Vehicles

Midlife Overhaul of New Flyer Allison Hybrid 60ft Articulated Buses



$12,702,054

$12,702,054

Overhaul of 25 hybrid buses, brought into service in 2009 and 2010, to enable optimal reliability through the end of their service life.

5307

Revenue Vehicles

Option Order Procurement of 194 New Flyer Hybrid 40 ft Buses (5307)

$96,329,062



$96,329,062

Procurement of 40-foot buses with hybrid propulsion to replace Emission Controlled Diesel (ECD) buses that have reached the end of their service life.

5307

Revenue Vehicles

Overhaul of Kawasaki 900 Series Bi-Level Coaches



$35,360,000

$35,360,000

Overhaul and upgrade of existing systems on commuter rail coaches that were brought into service in 2005 to enable optimal reliability through the end of their service life.

5307

Revenue Vehicles

Procurement of Battery Electric 40 ft Buses and Related infrastructure (5307)



$24,559,232

$24,559,232

Procurement of Battery Electric 40-ft. buses and supporting infrastructure to serve as a pilot for determining bus propulsion technologies for future procurements.

5307

Revenue Vehicles

Procurement of Bi-Level Commuter Rail Coaches



$127,680,000

$127,680,000

Procurement of bi-level commuter rail coaches to replace existing cars that have exceeded their service life.

5307

Revenue Vehicles

Red Line No. 3 Car - Targeted Reliability Improv.

$35,226,739



$35,226,739

Overhaul and upgrade of selected systems on Red Line fleet vehicles to extend service life until planned replacement.







$185,434,152

$626,942,833

$812,376,985



5307 - Signals and Systems

5307

Signals and Systems

ATC Implementation on the MBTA North Side Commuter Rail Lines (5307)

$28,384,529

$58,937,468

$87,321,997

Design and install automatic train control systems on all MBTA Commuter Rail North Side Lines. Improvements will include increased train traffic capacity and operational reliability on all lines.

5307

Signals and Systems

Green Line Track Upgrade



$73,179,263

$73,179,263

Replacement of select track components on the Green Line to bring them to a state of good repair.

5307

Signals and Systems

Signal Program - Red/Orange Line (5307)

$35,738,496



$35,738,496

Various signal upgrades and improvements along both the Red and Orange Lines.

5307

Signals and Systems

Signals and Systems - Program Allowance

$2

$1,999,999

$2,000,001

TIP program allowance for future cost adjustments







$64,123,027

$134,116,730

$198,239,757



5307 - Stations and Facilities

5307

Stations and Facilities

Charlestown Bus - Seawall Rehab



$11,228,382

$11,228,382

Rehabilitation of existing seawall to protect bus maintenance facility from future storm and flooding events.

5307

Stations and Facilities

Elevator Program

$26,886,141



$26,886,141

Installation of new redundant elevators and the replacement of existing elevators at various stations, in order to mitigate degradation of station elevators and to maintain station accessibility during elevator maintenance.

5307

Stations and Facilities

Harvard Square Busway Repairs

$14,992,676



$14,992,676

Rehabilitation of roadway, drainage and catenary infrastructure at the Harvard Square Busway.

5307

Stations and Facilities

Hingham Ferry Dock Modification



$1,200,000

$1,200,000

Capital improvements and modifications to the existing ferry dock in Hingham.







$41,878,817

$12,428,382

$54,307,199



5337 - Signals and Systems

5337

Signals and Systems

Alewife Crossing Improvements



$10,073,531

$10,073,531

As part of the Red/Orange Line Infrastructure Improvement Program, this project will involve the upgrade of track switches at Alewife Station and associated retrofits to accomodate these new components.

5337

Signals and Systems

ATC Implementation on the MBTA North Side Commuter Rail Lines (5337)

$51,357,042

$47,320,968

$98,678,010

Design and install automatic train control systems on all MBTA Commuter Rail North Side Lines. Improvements will include increased train traffic capacity and operational reliability on all lines.

5337

Signals and Systems

Green Line Central Tunnel Track and Signal Replacement



$96,000,000

$96,000,000

Replacement of the existing 25 cycle signal system and associated wayside equipment at Government Center, Copley and Park Street Interlockings, and related track work.

5337

Signals and Systems

Green Line D Branch Track and Signal Replacement

$40,400,000

$40,880,362

$81,280,362

Replacement of track and signal system components on the Highland Branch of the Green Line from Reservoir to Riverside Stations, including replacement of obsolete 25 Hz track circuits with modern solid-state 100 Hz track circuits.

5337

Signals and Systems

Infrastructure Asset Management Program Phase 1



$17,129,196

$17,129,196

Collection of infrastructure based asset data in order to update MBTA asset management databases, and manage asset and life cycle/risk management practices.

5337

Signals and Systems

MCRS2 v17 and Business Process Update

$4,160,000



$4,160,000

Updates and improvements to MBTA asset management systems and business processes.

5337

Signals and Systems

North Station Terminal Signal

$34,275,127



$34,275,127

Upgrades to the commuter rail signal/communication system in the North Station area required for more efficient phasing of future track alignments, including support for the future Draw1  Bridge Replacement Project.

5337

Signals and Systems

Power Systems Resiliency Program



$17,600,000

$17,600,000

Installation of nine new duct bank systems to replace damaged power infrastructure at West Fourth Street, Dudley Square, Arlington Street, Causeway Street, two locations on Commonwealth Ave and three locations on Beacon Street.

5337

Signals and Systems

Red Line Interlock Upgrades

$9,600,000



$9,600,000

Replacement of existing interlocking signal components on the Red Line to bring the assets to a state of good repair.

5337

Signals and Systems

Signal Program - Red/Orange Line (5337)

$47,283,331

$109,962,428

$157,245,759

Various signal upgrades and improvements along both the Red and Orange Lines.

5337

Signals and Systems

System-Wide Radio



$55,439,999

$55,439,999

Replacement of existing radio system for MBTA Police to support critical two-way communication for MBTA Transit Police and to support a secure and Interoperable Radio System.

5337

Signals and Systems

Worcester Line Track Improvements Incl. 3rd Track Feasibility Study

$1,001,643



$1,001,643

Design Phase Services for the proposed Framingham/Worcester Line third track. It will include assessments of proposed operation, alternatives analysis and design plans.







$188,077,143

$394,406,484

$582,483,627



5337 - Stations and Facilities

5337

Stations and Facilities

Codman Yard Expansion and Improvements



$26,280,432

$26,280,432

Infrastructure improvements to Codman Yard, an additional Red Line storage facility, to accommodate the new vehicle fleet.

5337

Stations and Facilities

Commonwealth Ave Stations Access



$23,463,054

$23,463,054

Addressing accessibility issues along the B branch of the Green Line along Commonwealth Avenue.

5337

Stations and Facilities

Downtown Crossing Vertical Transportation Improvements Phase 2



$5,926,390

$5,926,390

Construction of two new redundant elevators, in order to improve accessibility and to provide for future elevator maintenance without rendering the station temporarily inaccessible.

5337

Stations and Facilities

Elevator Program Multiple Location Design



$38,978,268

$38,978,268

Design for the installation of new redundant elevators and the replacement of existing elevators system wide.

5337

Stations and Facilities

Feasibility Study of Remaining Inaccessible Stations - Green Line



$9,120,000

$9,120,000

Feasibility study and preliminary design for inaccessible Green Line stations

5337

Stations and Facilities

Forest Hills Improvement Project



$26,089,763

$26,089,763

Improvements at Forest Hills Station on the Orange Line and Needham Commuter Rail Line to comply with ADA accessibility standards.  Work will also include infrastructure and other improvements.

5337

Stations and Facilities

Lynn Station & Parking Garage Improvements Phase II



$26,461,132

$26,461,132

Extensive rehabilitation efforts include reconstruction of the existing commuter rail platform, upgrade of mechanical and electrical systems at the station, and structural repairs and code compliance retrofits to the garage.

5337

Stations and Facilities

Natick Center Station Accessibility Project



$33,822,690

$33,822,690

Accessibility improvements at the Natick Center commuter rail station on the Framingham/Worcester Line.

5337

Stations and Facilities

Newton Commuter Rail Stations



$16,511,946

$16,511,946

For a conceptual design and operational analysis study of the Newton commuter rail stations, with additional funding for various accessibility and infrastructure improvements.

5337

Stations and Facilities

Newton Highlands Green Line Station Accessibility Project



$18,375,283

$18,375,283

Improvements at Newton Highlands station on the D branch of the Green Line to comply with ADA accessibility standards.

5337

Stations and Facilities

Oak Grove Station Vertical Transportation Improvements

$28,232,566



$28,232,566

Retrofit of the existing Oak Grove station on the Orange Line to bring it into full compliance with ADA standards, including the replacement of existing elevators, construction of two new elevators, various parking and path of travel upgrades.

5337

Stations and Facilities

Park Street Station Wayfinding Improvements Construction

$14,903,909



$14,903,909

Replacement of existing signage with updated ADA-compliant standard graphics at the lobby, Green Line platform, Red Line platform and Winter Street concourse as well as related architecture improvements such as lighting and illuminated exit signs.

5337

Stations and Facilities

Ruggles Station Upgrade



$2,599,003

$2,599,003

Design for state of good repair improvements to Ruggles Station on the Orange Line.

5337

Stations and Facilities

Silver Line Gateway - Phase 2

$27,856,962



$27,856,962

Includes the building of a new commuter rail station adjacent to the new Chelsea Bus Rapid Transit (BRT) Station located at the Mystic Mall, as well as decommissioning of the existing Chelsea Commuter Rail Station and signal prioritization.

5337

Stations and Facilities

South Attleboro Station Improvements



$3,580,654

$3,580,654

Needs assessment and design services associated with accessibility, structural, parking and multi-modal facility improvements for the South Attleboro commuter rail station.

5337

Stations and Facilities

Symphony Station Improvements



$33,416,159

$33,416,159

Upgrades to the existing Symphony Station on the Green Line in order to provide a modern, accessible, code-compliant facility.

5337

Stations and Facilities

Winchester Center Station



$32,196,320

$32,196,320

Renovation and accessibility improvements to Winchester Center Station on the Lowell and Haverhill commuter rail lines.

5337

Stations and Facilities

Stations and Facilities - Program Allowance



$1,083,733

$1,083,733

TIP program allowance for future cost adjustments







$70,993,437

$297,904,827

$368,898,264



5337 - Bridge and Tunnel

5337

Bridge and Tunnel

Bridge Bundling Contract (Rehabilitation of 6 Bridges)

$58,362,436

$27,252,649

$85,615,085

Replacement of 6 commuter rail bridges: Lynn Fells Parkway in Melrose (Haverhill Line); Parker Street in Lawrence (Haverhill Line); Commercial Street in Lynn (Newburyport/Rockport Line); Bacon Street in Wellesley (Worcester Line); Intervale Road in Weston (Worcester Line); and High Line Bridge in Somerville (Lowell Line).

5337

Bridge and Tunnel

Bridges - Design



$7,999,999

$7,999,999

Design for high priority bridge repairs system wide.

5337

Bridge and Tunnel

East Cottage Street Bridge



$12,687,557

$12,687,557

Replacement of East Cottage Street bridge with a new superstructure and substructure to meet design code/standards, as well as MBTA and FTA State of Good Repair requirements.

5337

Bridge and Tunnel

Emergency Bridge Design / Inspection & Rating

$8,000,000



$8,000,000

Inspection of bridge assets system wide for determination of asset condition ratings and subsequent prioritization and scoping for repairs to select bridges.

5337

Bridge and Tunnel

Emergency Bridge Repair

$6,399,999



$6,399,999

Repairs to bridges system wide, based on asset condition as determined by system wide inspections.

5337

Bridge and Tunnel

Inspection and Rating of MBTA Systemwide Bridges



$4,000,000

$4,000,000

Inspection of bridge assets system wide for determination of asset condition ratings and subsequent prioritization and scoping for repairs to select bridges.

5337

Bridge and Tunnel

Longfellow Approach



$44,000,000

$44,000,000

Rehabilitation of the Longfellow Approach Viaduct, Charles/MGH Station platforms, and Span 1 of the Longfellow Bridge.

5337

Bridge and Tunnel

Norfolk Avenue Bridge



$11,240,000

$11,240,000

Replacement of bridge carrying the Fairmont (Dorchester) Line Commuter Rail service over Norfolk Avenue in Boston.

5337

Bridge and Tunnel

Robert Street Bridge



$12,928,771

$12,928,771

Replacement of bridge carrying the Needham Line Commuter Rail service over Robert Street in Roslindale.

5337

Bridge and Tunnel

Structural Repairs Systemwide



$4,000,000

$4,000,000

Repairs to bridge or other structures system wide on an emergency or planned basis.

5337

Bridge and Tunnel

Tunnel Inspection Systemwide



$8,600,000

$8,600,000

Inspection to assess condition of transit tunnels system wide.

5337

Bridge and Tunnel

Tunnel Rehab



$6,075,791

$6,075,791

Repair and rehabilitation of transit tunnels system wide.







$72,762,435

$138,784,767

$211,547,202



5339 - Bus and Bus Facility

5339

Bus and Bus Facilities

60' New Flyer Bus Overhaul



$22,938,000

$22,938,000

Midlife overhaul of 60 forty-foot BAE Hybrid buses delivered in 2014 - 2015 from New Flyer to ensure continued reliable operations and to meet expected useful life.

5339

Bus and Bus Facilities

Option Order Procurement of 194 New Flyer Hybrid 40 ft Buses (5339)
